74LS132 Quad 2-Input Schmitt trigger NAND Gate IC – Datasheet

6,596 views

The 74LS132 IC package contains four independent positive logic 2-input NAND Gates with Schmitt trigger inputs. It is the part of 74XXYY IC series. The 74LS132 IC has a wide range of working voltage, a wide range of working conditions, and directly interfaces with CMOS, NMOS, and TTL. The output of the IC always comes in TTL which makes it easy to work with other TTL devices and microcontrollers. The IC 74LS132 is smaller in size and it has a much faster speed which makes it reliable in every kind of device.

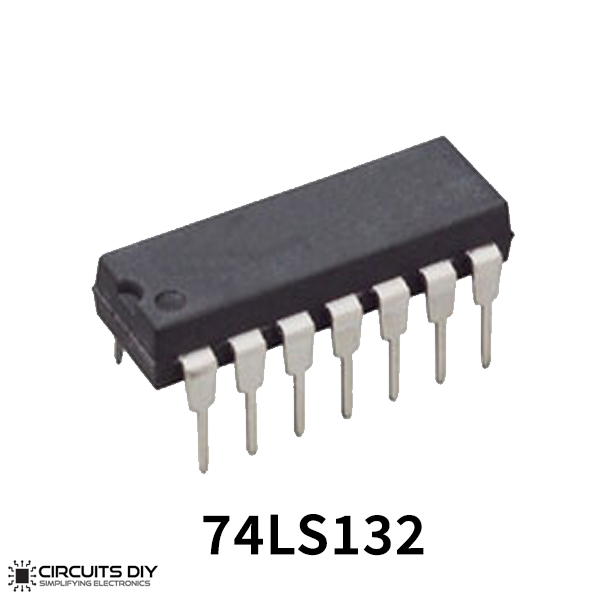

74ls132 ic

What is a NAND Gate?

A NAND Gate is a logical gate which is a combination of AND and NOT gates. It is considered as a “universal” gate in Boolean algebra as it is capable of producing all other logic gates. A NAND gate consists of one or more inputs with a single output. The output of the NAND gate is always at logic 1 and only goes to logic 0 when all the inputs to the NAND gate are at logic 1. In other words, the output of the NAND gate always remains true if at least one of its inputs remains false.

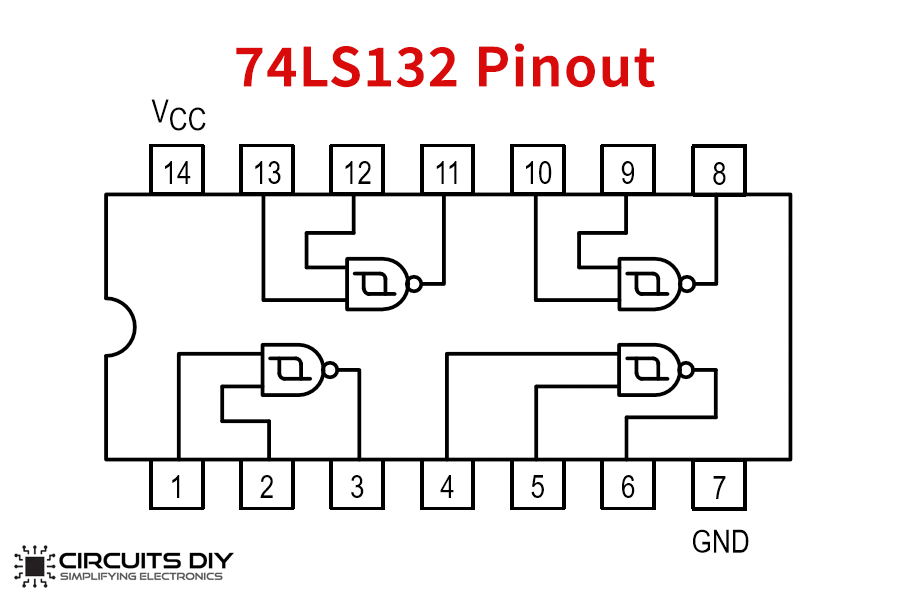

74LS132 Pinout

74ls132 pinout

74LS132 Pin Configuration

Pin NoPin NameDescription
11AInput Pin 1A
21BInput pin 1B
31YOutput Pin
42AInput Pin 2A
52BInput Pin 2B
62YOutput Pin
7GNDGround Pin
83YOutput Pin
93AInput Pin 3A
103BInput Pin 3B
114YOutput Pin
124AInput Pin 4A
134BInput Pin 4B
14VCCChip Supply Voltage

74LS132 Features & Specifications

  • VCC (Min): 4.75V
  • VCC (Max): 5.25V
  • Channels: 4
  • Inputs per channel: 2
  • IOL (Max): 16mA
  • IOH (Max): -0.8mA
  • Input type: Schmitt trigger
  • Output type: Push-Pull
  • Features: High Speed (TPD 10-50ns)
  • Data rate: 35 Mbps
  • Operating temperature range: 0°C  to 70°C
  • Rating: Catalog

Applications

  • PCs and notebooks
  • Digital Electronics
  • Networking

You can download this Datasheet for 74LS132 Quad 2-Input Schmitt trigger NAND Gate from the link given below:
