74LS10 Triple 3-Input NAND Logic Gate IC – Datasheet

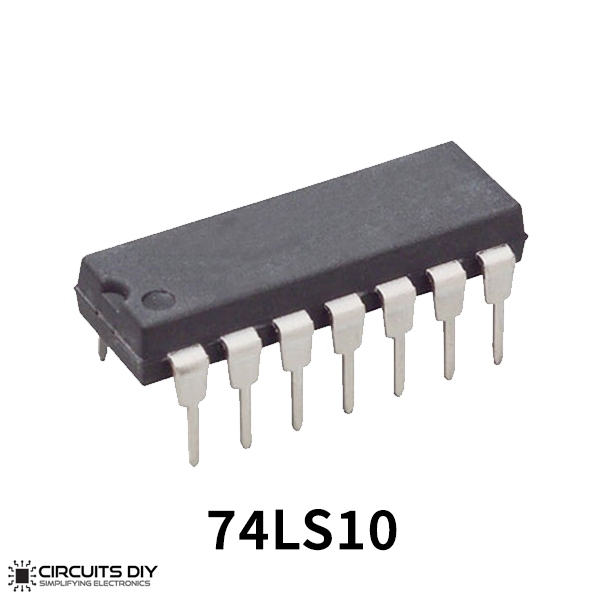

The 74LS10 IC package contains three independent positive logic 3-input NAND Gates. It is the part of 74XXYY IC series. The 74LS10 IC has a wide range of working voltage, a wide range of working conditions, and directly interfaces with CMOS, NMOS, and TTL. The output of the IC always comes in TTL which makes it easy to work with other TTL devices and microcontrollers. The IC 74LS10 is smaller in size and it has a much faster speed which makes it reliable in every kind of device.

What is a NAND Gate?

A NAND Gate is a logical gate which is the opposite of an AND logic gate. It is a combination of AND and NOT gates. It is considered as a “universal” gate in Boolean algebra as it is capable of producing all other logic gates. A NAND gate consists of one or more inputs with a single output. The output of the NAND gate is always at logic 1 and only goes to logic 0 when all the inputs to the NAND gate are at logic 1. In other words, the output of the NAND gate always remains true if at least one of its inputs remains false.

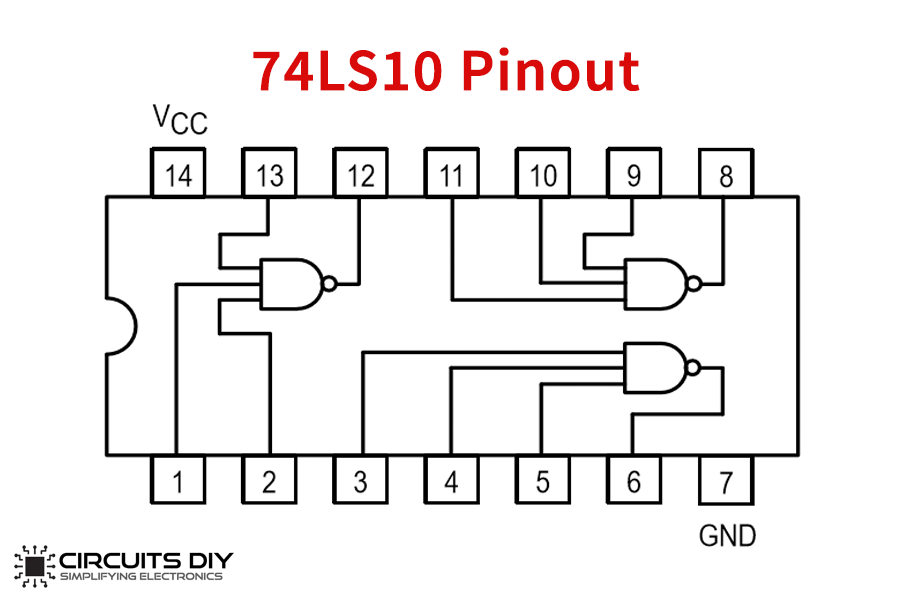

74LS10 Pinout

74LS10 Pin Configuration

Pin No	Pin Name	Description
1	A1	INPUT 1 of GATE 1
2	B1	INPUT 2 of GATE 1
3	A2	INPUT 1 of GATE 2
4	B2	INPUT 2 of GATE 2
5	C2	INPUT 3 of GATE 2
6	Y2	Output Of Gate 2
7	GND	Ground
8	Y3	Output Of Gate 3
9	A3	INPUT 1 of GATE 3
10	B3	INPUT 2 of GATE 3
11	C3	INPUT 3 of GATE 3
12	Y1	Output Of Gate 1
13	C1	INPUT 3 of GATE 1
14	VCC	Supply Voltage

74LS10 Specifications

• Supply Voltage 7V
• Input Voltage 7V
• Operating Free Air Temperature Range 0°C to +70°C
• Storage Temperature Range -65°C to +150°
• Three Independent NAND Gates
• Fast Switching Times
• Standard TTL Switching Voltages

Applications

The 74LS10 IC has a number applications, a few are listed below:

• Memory units
• PCs and notebooks
• Digital Electronics
• Networking

You can download this Datasheet for 74LS10 3-Input NAND gate from the link given below:

See Also: 7408 2-Input AND Gate | 7407 Hex Buffer IC | 7404 NOT Gate IC
