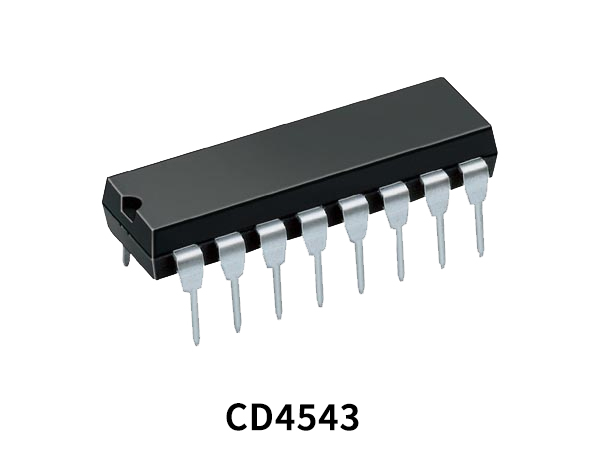

CD4543 BCD to 7-Segment Decoder – Datasheet

The CD4543BE is a BCD-to-seven Segment Latch/Decoder/Driver, designed primarily for liquid-crystal display (LCD) applications. The CD4543 IC has a wide range of working voltage, a wide range of working conditions, and directly interfaces with CMOS, NMOS, and TTL. The output of the IC always comes in TTL which makes it easy to work with other TTL devices and microcontrollers. CD4543 has integral importance in DLD design and logic switching applications.

BCD to 7-Segment Decoder

A BCD to Seven Segment decoder is a combinational logic circuit that accepts a decimal digit in BCD (input) and generates appropriate outputs for the segments to display the input decimal digit.

CD4543 Key Features

• Display blanking of all illegal input combinations
• Latch storage of code
• Pin-for-pin replacement for CD4056B (with pin 7 tied to VSS)
• Direct LED driving capability
• 100% Tested for quiescent current at 20V
• Maximum input current of 1µA at 18V over full package-temperature range, 100nA at 18V and 25°C
• 5, 10 and 15V Parametric ratings

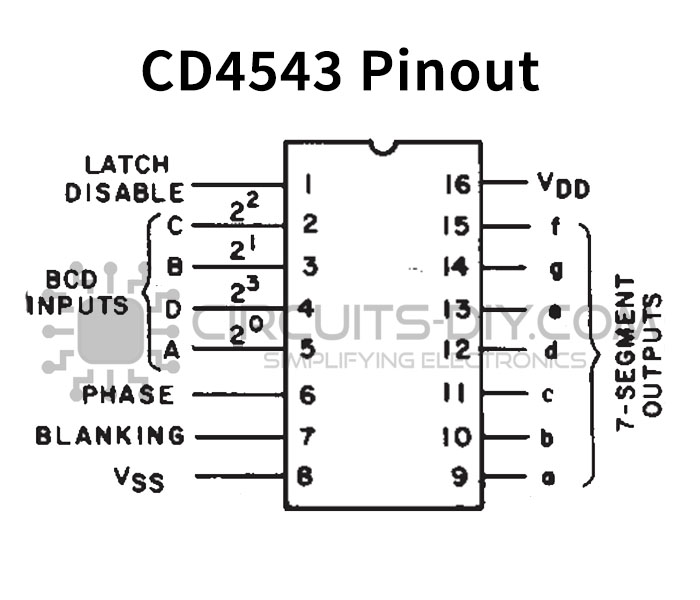

CD4543 Pinout

Pin No	Pin Name	Description
1	LATCH DISABLE	latch disable pin
2	IN C	Input Pin C
3	IN B	Input Pin B
4	IN D	Input Pin D
5	IN A	Input Pin A
6	PHASE	Phase Pin
7	BLANKING	Blanking Pin
8	VSS	Source Supply
9	SEG a	Seven Segment Display Output a
10	SEG b	Seven Segment Display Output b
11	SEG c	Seven Segment Display Output c
12	SEG d	Seven Segment Display Output d
13	SEG e	Seven Segment Display Output e
14	SEG g	Seven Segment Display Output g
15	SEG f	Seven Segment Display Output f
16	VDD	Drain Supply

Application

• Sensing & Instrumentation,
• Computers & Computer Peripherals,
• Clock & Timing
• Dashboard display driver

CD4543 Datasheet

You can download the datasheet for CD4543 BCD to 7-Segment Decoder IC from the link given below:
