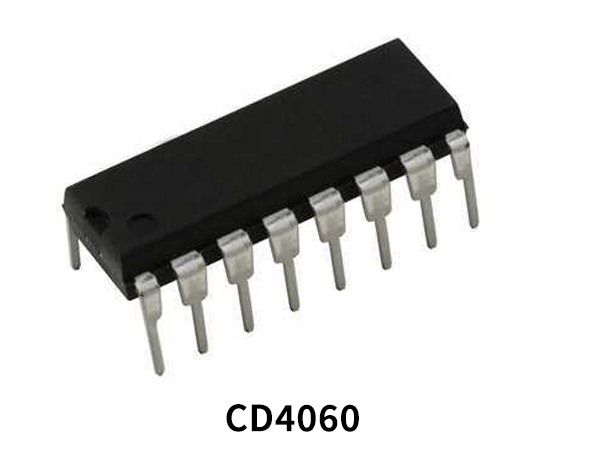

The CD4060 is a 14-stage ripple carry binary counters. The IC belongs to the CD4000 IC series and is made by using Complementary MOS (CMOS) technology. The counters are advanced one count on the negative transition of each clock pulse. The counters are reset to the zero state by a logical “1” at the reset input independent of the clock. The IUC is always available in a 14 – pin hermetically sealed dual in line package (DIP). The output of the IC always comes in TTL, which makes it to be interfaced with other TTL, CMOS, and NMOS devices.
What is a Binary Ripple Counter?
A binary ripple counter generally uses a bistable multivibrator circuit so that cache input applied to the counter causes the count to advance or decrease. The Q and Q output terminals are always logically opposite. If the Q output is logical 1 (SET), the Q output then logical 0, If the Q output is logical 0 (REST), then the output is logical 1. A simple Binary ripple counter can easily be made by rigging at least two D – type flip flops.
CD4060 Key Features
- Wide supply voltage range: 1.0V to 15V
- High noise immunity: 0.45 VDD (typ.)
- Low power TTL compatibility: Fan out of 2 driving 74L or 1 driving 74LS
- Medium speed operation: 8 MHz typ. at VDD = 10V
- Schmitt trigger clock input

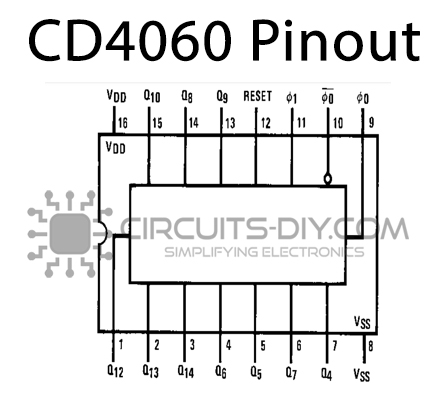

CD4060 Pinout
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | Q12 | Output pin 12 of the Binary counter |
| 2 | Q13 | Output pin 13 of the Binary counter |
| 3 | Q14 | Output pin 14 of the Binary counter |
| 4 | Q6 | Output pin 6 of the Binary counter |
| 5 | Q5 | Output pin 5 of the Binary counter |
| 6 | Q7 | Output pin 7 of the Binary counter |
| 7 | Q4 | Output pin 4 of the Binary counter |
| 8 | VSS | source supply |
| 9 | CEXT | External Capacitor |
| 10 | REXT | External Resisto |
| 11 | RS | Clock Input Pin |
| 12 | MR | Master Reset |
| 13 | Q9 | Output pins 9 of the Binary counter |
| 14 | Q8 | Output pin 8 of the Binary counter |
| 15 | Q10 | Output pin10 of the Binary counter |
| 16 | VDD | Drain supply |
Application
- Used for creating long timing period
- Astable frequency divider or counter circuit
- Timing related applications
- Used in project where Microcontrollers should be avoided
CD4060 Datasheet
You can download the datasheet for CD4060 14-Stage Ripple-Carry Binary Counter IC from the link given below:
