74LS04 Hex Inverter IC / NOT Gate IC – Datasheet

34,965 views

74LS04 Hex Inverter is a member of the 74XXYY IC series. The 74-series are digital logic integrated circuits, It includes six independent inverse HEX gates. Each gate consists of an input and an output. The reverse phase is one of its main functions. The 74LS04 IC has a wide range of working voltage, a wide range of working conditions, and directly interfaces with CMOS, NMOS, and TTL.

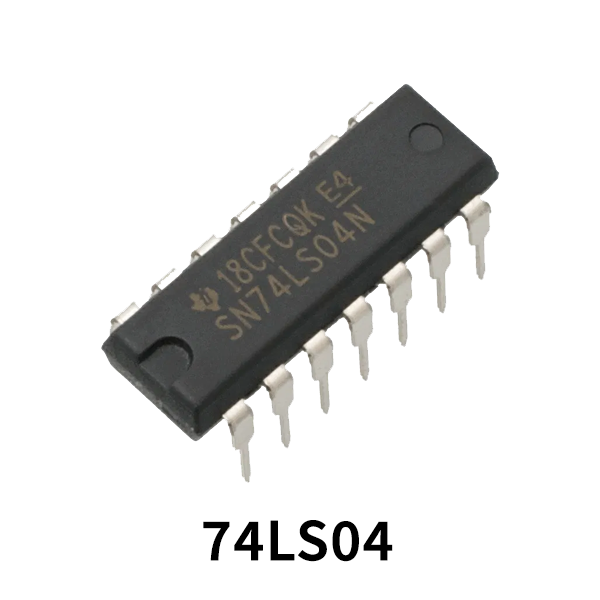

74ls04 ic

What is a NOT gate?

A NOT gate is a digital logic gate that inverts the input digital signal.  A NOT gate always has high or logic level 1 output when its input is low or at logic level 0. On the other hand, a logical NOT gate always has low or logic level 0 output when input is high or at logic level 1.

[inaritcle_1]

74LS04 Pinout

74ls04 pinout

74LS04 Configuration

Pin NoPin NameDescription
11AINPUT of GATE 1
21YOUTPUT of GATE 1
32AINPUT of GATE 2
42YOUTPUT of GATE 2
53AINPUT of GATE 3
63YOUTPUT of GATE 3
7GNDElectrical Ground
84YOUTPUT of GATE 4
94AINPUT of GATE 4
105YOUTPUT of GATE 5
115AINPUT of GATE 5
126YOUTPUT of GATE 6
136AINPUT of GATE 6
14VccSupply voltage of the chip

74LS04 Key Features & Specifications

  • Supply voltage range: +4.75V to +5.25V
  • Maximum supply voltage: +7V
  • Maximum current allowed to draw through each gate output: 8mA
  • Totally lead-free
  • TTL outputs
  • Maximum Rise Time: 15ns
  • Maximum Fall Time: 15ns
  • Operating temperature: 0°C  to 70 °C

74LS04 Hex Inverter Applications

The 7404 NOT gate IC has a number applications, a few are listed below:

  • General purpose logic
  • Servers
  • Memory units
  • PCs and notebooks
  • Digital Electronics
  • Networking
  • Digital systems

74LS04 Datasheet

You can download the 74LS04 Hex Inverter IC / NOT Gate IC from the link given below:
