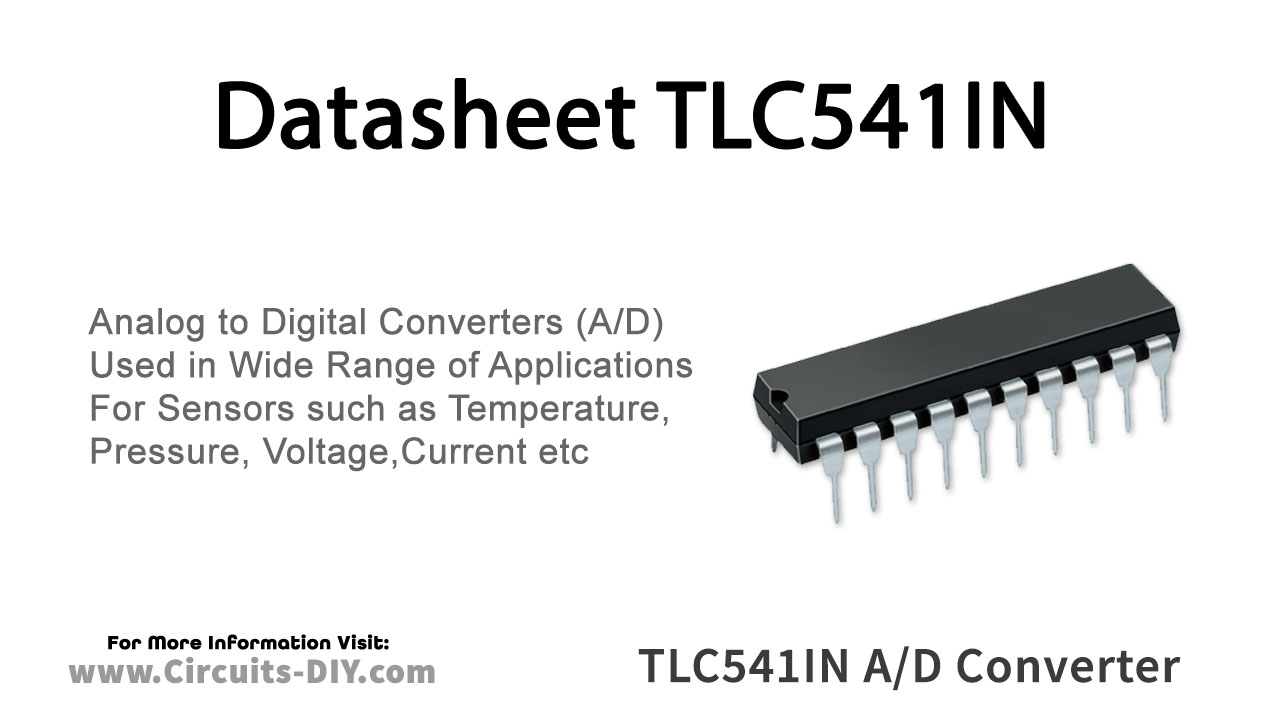

TLC541IN 8-bit A/D Converter with MUX

Contents hide

The TLC541IN is CMOS A/D converters built around an 8-bit switched capacitor successive-approximation A/D converters. They are designed for serial interface to a microprocessor or peripheral via a 3-state output with up to four control inputs, including independent SYSTEM CLOCK, I/O CLOCK, chip select (CS), and ADDRESS INPUT. A 4-MHz system clock for the TLC540 and a 2.1-MHz system clock for the TLC541 with a design that includes simultaneous read/write operation allow high-speed data transfers and sample rates of up to 75,180 samples per second for the TLC540 and 40,000 samples per second for the TLC541.

TLC541 Pinout

TLC541IN Pin Configuration

Pin No	Pin Name	Description
1	IN A0	Input Pin A0
2	IN A1	Input Pin A1
3	IN A2	Input Pin A2
4	IN A3	Input Pin A3
5	IN A4	Input Pin A4
6	IN A5	Input Pin A5
7	IN A6	Input Pin A6
8	IN A7	Input Pin A7
9	IN A8	Input Pin A8
10	GND	Ground Pin
11	IN A9	Input Pin A9
12	IN A10	Input Pin A10
13	REF-	Negative Reference Voltage
14	REF+	Positive Reference Voltage
15	CS’	Chip Select (Active Low)
16	DATA OUT	Data output Pin
17	ADDRESS IN	Address Input Pin
18	I/O CLK	Input /Output Clock Pin
19	SYS CLK	System Clock Pin
20	VCC	Supply Voltage

TLC541IN Features

8-Bit Resolution A/D Converter
Microprocessor Peripheral or Stand-Alone Operation
On-Chip 12-Channel Analog Multiplexer
Built-in Self-Test Mode
Software-Controllable Sample and Hold
Total Unadjusted Error . . . ±0.5 LSB Max
TLC541 is Direct Replacement for Motorola MC145040 and National Semiconductor ADC0811
Pinout and Control Signals Compatible with TLC1540 Family of 10-Bit A/D Converters
CMOS Technology
