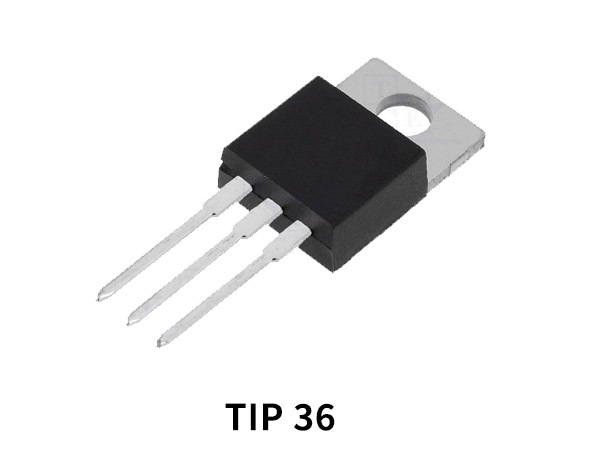

The TIP36C is a silicon Epitaxial-Base PNP transistor mounted in TO-218 plastic package. It is intended for use in power amplifier and switching applications

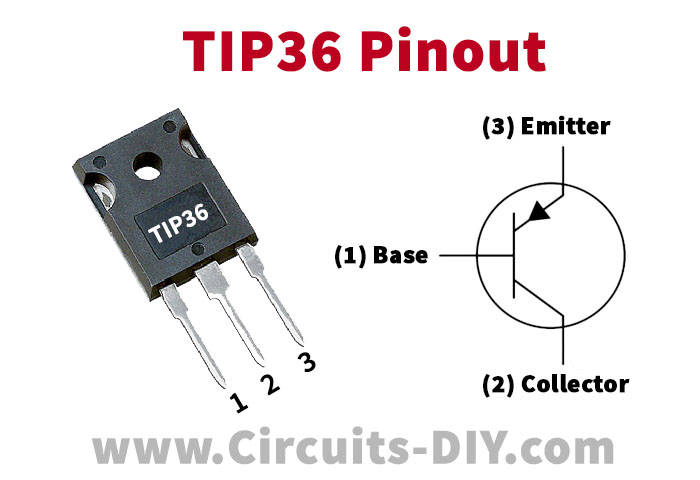

TIP36 Pinout
TIP36 Pin Configuration
Pin No | Pin Name |
---|---|
1 | Base |
2 | Collector |
3 | Emitter |
TIP36 Key Features
- 25 A Collector Current
- Low Leakage Current — ICEO = 1.0 mA @ 30 and 60 V
- Excellent DC Gain — hFE = 40 Typ @ 15 A
- High Current Gain Bandwidth Product — hfe = 3.0 min @ IC = 1.0 A, f = 1.0 M
- Type Designator: TIP36C
- Material of Transistor: Si
- Polarity: PNP
Specification
Ic (mA) | Pd (mW) | Vce (max) | Vcb | hfe | @Ic | FT (MHz) |
---|---|---|---|---|---|---|
25 | 125 | 100 | 100 | 15-75 | 15000 | 3 |
TIP36 Equivalent/Alternate:
- TIP100, TIP101, TIP102, TIP105, TIP106, TIP107, TIP110, TIP35C
Application
- Power Amplifier
- Switching Applications
You can download this datasheet for TIP36C PNP Power Transistor from the link given below:
