TDA2002 8W Audio High Power Amplifier – Datasheet

3,637 views

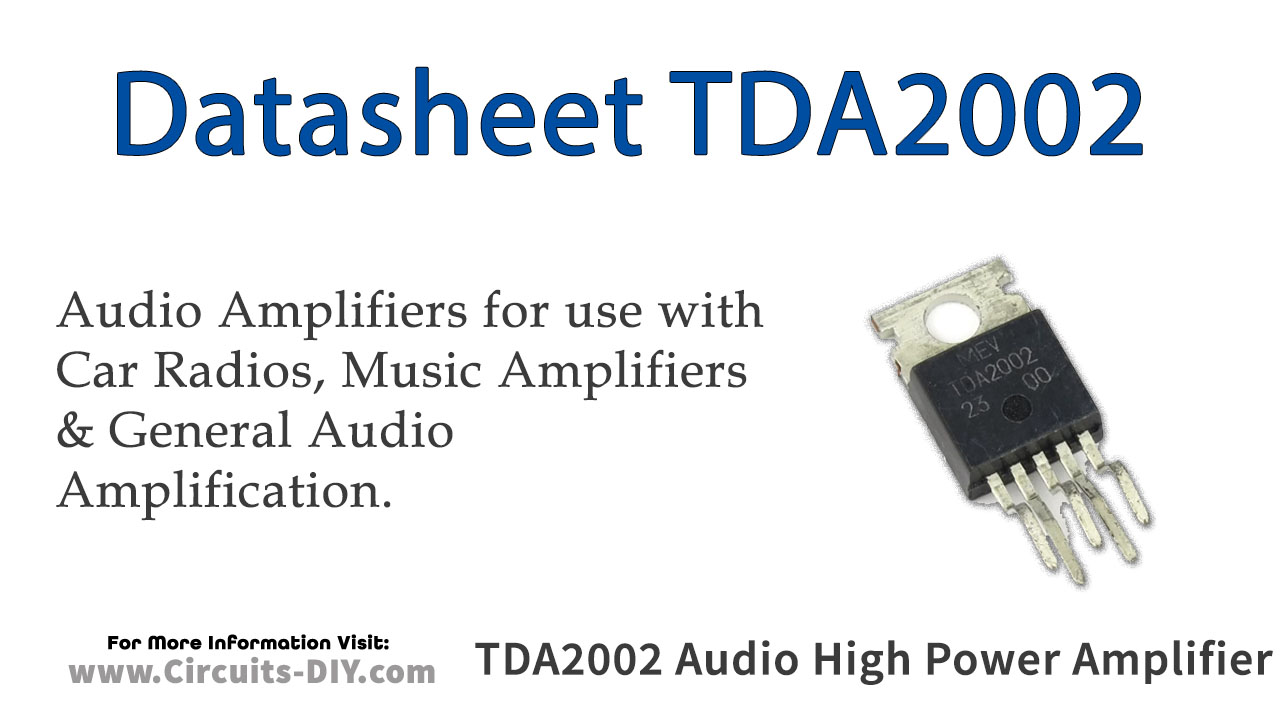

TDA2002 8W Audio High Power Amplifier provides a high output current capability (up to 3.5A) and has very low harmonic and crossover distortion. The device incorporates a short-circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the operating point of the output transistors within their safe operating range

TDA2002 Pin Configuration

Pin NoPin NameDescription
1NON-INV-INNon-Inverting Input Pin
2INV-INInverting Input Pin
3GNDGround Pin
4OUTOutput Pin
5VsAmplifier Bias Input Pin

TDA2002 Key Features

  •  High output current
  • Very low harmonic and crossover distortion
  • Short-circuit protection
  • Thermal shutdown
  • High Reliability

You can download this datasheet for the TDA2002 Audio High Power Amplifier – Datasheet from the link given below:
