TDA1517 2 x 6W Stereo Power Amplifier – Datasheet

8,172 views

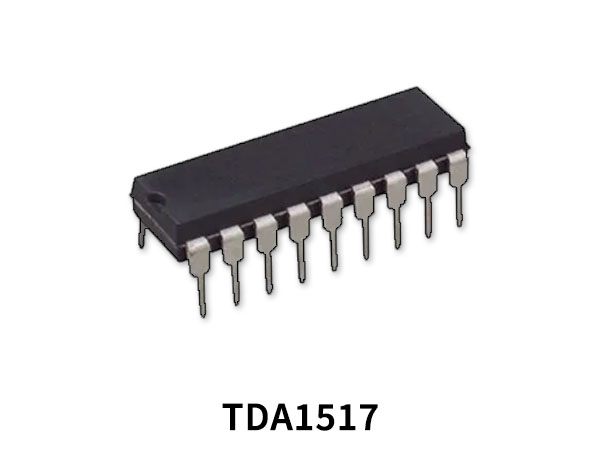

The TDA1517 is an integrated class-B dual output amplifier in a plastic single in-line medium power package with fin (SIL9MPF) and a plastic heat-dissipating dual in-line package (HDIP18). The device is primarily developed for multi-media applications.

Functional Description

The TDA1517 contains two identical amplifiers with differential input stages. The gain of each amplifier is fixed at 20 dB. A special feature of the device is the mute/standby switch which has the following features:

  • Low standby current (<100 µA)
  • Low mute/standby switching current (low-cost supply switch)
  • Mute condition.

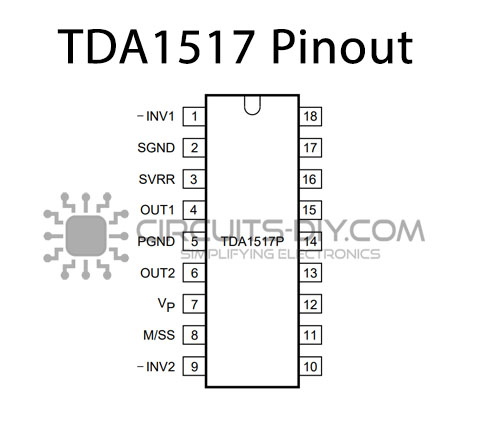

TDA1517 Pinout

TDA1517 Pin Description

Pin NoPin NameDescription
1−INV1Inverting Input 1
2SGNDSignal Ground
3SVRRSupply Voltage Ripple Rejection Output
4OUT1Output 1
5PGNDPower Ground
6OUT2Output 2
7VPSupply Voltage
8M/SSMute/Standby Switch Input
9−INV2Inverting Input 2

TDA1517 Features

  • Requires very few external components
  • High output power
  • Fixed gain
  • Good ripple rejection
  • Mute/standby switch
  • AC and DC short-circuit safe to ground and VP
  • Thermally protected
  • Reverse polarity safe
  • Capability to handle high energy on outputs (VP = 0 V)
  • No switch-on/switch-off plop
  • Electrostatic discharge protection.

Application

  • LCD-TV, Monitors
  • Multi-media AV center Hi-Fi applications
