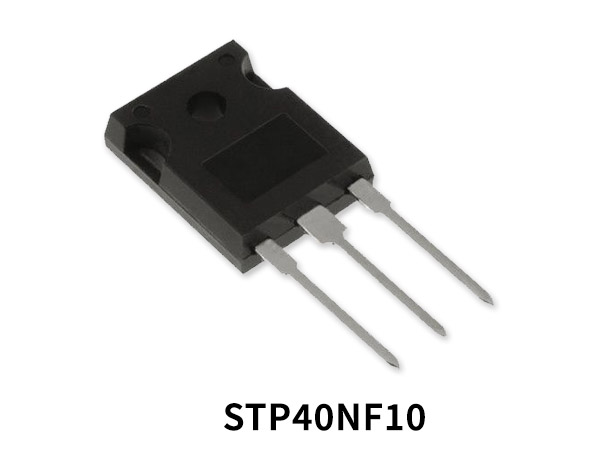

STP40NF10L 40A 100V N-Channel Power MOSFET series realized with STMicroelectronics unique Strip FET process has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced high-efficiency isolated DC-DC converters for Telecom and Computer application. It is also intended for any application with low gate charge drive requirements
STP40NF10L Pinout
STP40NF10L Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Gate |
| 2 | Drain |
| 3 | Source |
STP40NF10L Key Features
- Typical RDS(on) = 0.028Ω
- Exceptional dv/dt Capability
- 100% Avalanche Tested
- Application Oriented Characterization
- Type Designator: STP40NF10L
- Type of Transistor: MOSFET
- Type of Control Channel: N -Channel
STP40NF10L Specification
| Id (A) | Pd (W) | Vds (max) | Rds (on) | Vgs (max) |
|---|---|---|---|---|
| 40 | 150 | 100 | 0.033 | 15 |
STP40NF10L Equivalent/Alternative
- STP100N10F7, STP100N8F6, STP100NF04, STP1013, STP105N3LL
Application
- High-Efficiency DC-DC Converters
- Ups And Motor Control
- Automotive
You can download this datasheet for STP40NF10L 40A 100V N-Channel Power MOSFET from the link given below:
