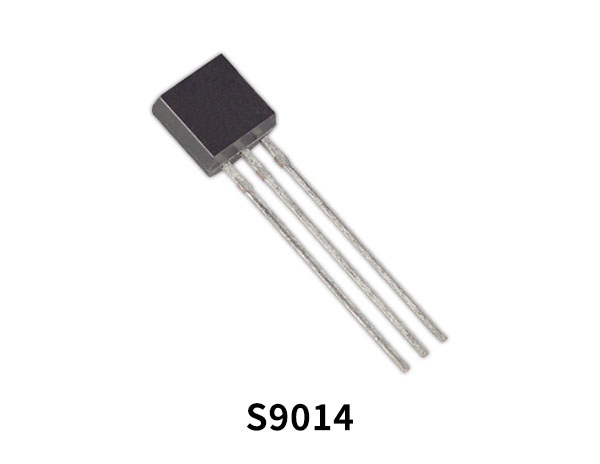

S9014 NPN Small Signal Transistor is designed for pre-amplifier, low level & low noise applications. S9014 is Complementary to SS9015

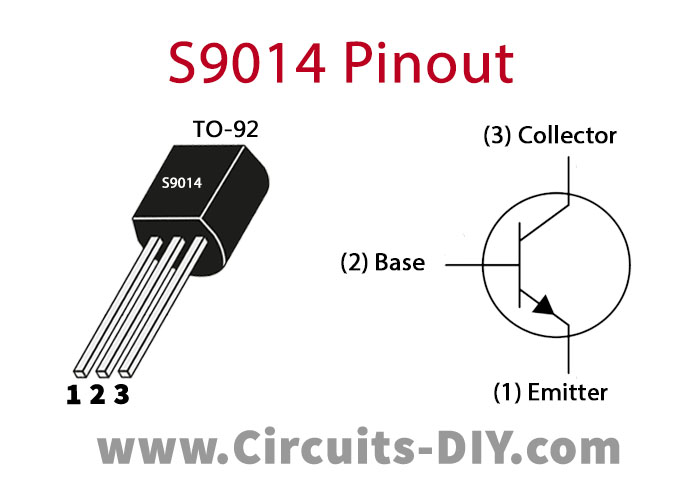

S9014 Pinout
S9014 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
C9014 Key Features
- High total power dissipation. (PT=450mW)
- High hFE and good linearity
- Complementary to SS9015
C9014 Specification
| Name | Description |
|---|---|
| Collector-Emitter Voltage (Vce) | 45 V |
| Collector-Base Voltage (Vcb) | 50 V |
| Emitter-Base Voltage (Veb) | 5 V |
| Collector Current (Ic) | 0.1 A |
| Collector Power Dissipation (Pc) | 0.2 W |
| Transition Frequency | 150 MHz |
Application
- Pre-Amplifier
- Low Level & Low Noise
You can download this datasheet for S9014 NPN Small Signal Transistor – Datasheet from the link given below:
