Introduction
In this article, we’ll explore the inner workings of quadraphonic sound systems, including their differences from mono and stereo systems. We’ll also look closely at a quadraphonic sound system circuit, its capabilities, and how it can enhance your listening experience. Get ready to be amazed by the power of sound!
A quadraphonic sound system circuit is a highly advanced sound system that provides a genuine and immersive music experience. Compared to monophonic and Stereophonic sound systems, which only use a single and two channels, respectively, it is more complex and can give a greater sense of space, depth, and displacement.
So before starting, let us understand the Stereophonic and Quadraphonic systems.
Stereophonic System
Stereophonic systems use two separate channels or amplifiers to drive two separate speakers, unlike mono systems. The input for a stereo system is fed through a stereophonic cartridge or tape. For stereophonic recordings, two different microphones are used and placed a few meters apart from each other. The signals picked up by these microphones are recorded on stereo records or tapes, which, when played, produce two separate signals amplified through two separate amplifiers. This creates a three-dimensional effect in the music reproduced from the recording.
Quadraphonic System
The quadraphonic sound system is a further advancement of the stereo system, and it comprises four separate channels or amplifiers, which can give a live performance effect. It requires quadraphonic records and pick-up cartridges to function correctly, which can be expensive. The Figure below shows an electronic gadget that provides a quadraphonic sound effect when connected to a stereo system. Without requiring quadraphonic records or pick-up cartridges. While it is not an actual quadraphonic system, it produces a good effect.
Hardware Required
| S.no | Components | Value | Qty |
|---|---|---|---|
| 1 | IC | 741 | 2 |
| 2 | V. Resistor | 100k | 3 |
| 3 | Resistor | 100k, 10k | 6, 2 |
| 4 | Capacitor | 0.22uF | 2 |

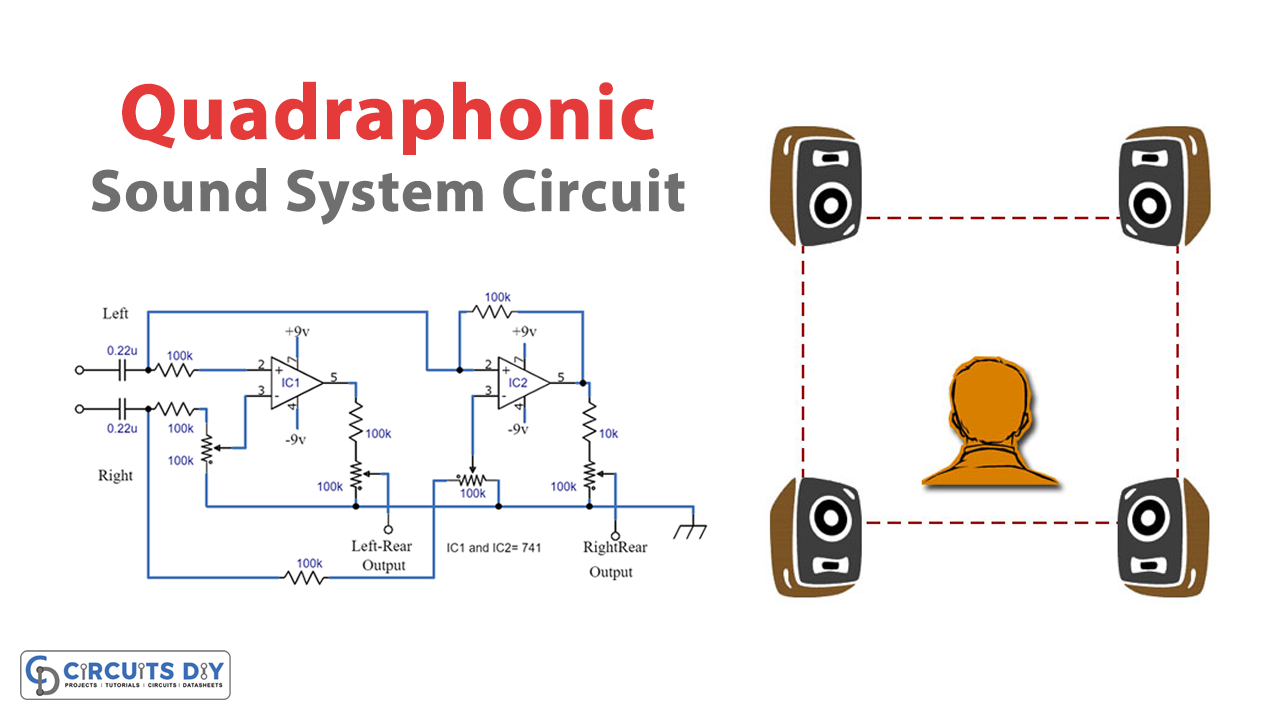

Circuit Diagram
Circuit Explanation
The unit is connected between the pre-amplifier and the amplifier and requires shielded wires for connections to reduce hum and other distortions. The output signal from the unit is fed into two separate power amplifiers, which operate the rear left and right speaker columns. This creates four channels: right front, rear, and left front and rear, producing a quadraphonic sound effect. The ganged potentiometer marked as “Depth” controls the spatial depth effect, providing a genuine three-dimensional feeling. The circuit uses two nine-volt batteries and draws very little current.
Conclusion
In conclusion, the quadraphonic sound system circuit is a remarkable technology. With its ability to produce a genuine three-dimensional effect, you will feel like you’re part of the music.
We hope you find this article informative and that it has sparked your curiosity to learn more about the exciting world of sound systems. If you have any questions or comments about the quadraphonic sound system circuit, please let us know in the comments below.
