Q4004LT 4A 400V TRIAC – Datasheet

5,336 views

The Quadric Q4004LT is an internally triggered TRIAC designed for AC switching and phase control applications. It is a TRIAC and DIAC in a single package, which saves user expense by eliminating the need for separate TRIAC and DIAC components.
buy sildenafil citrate tadalafil vardenafil online

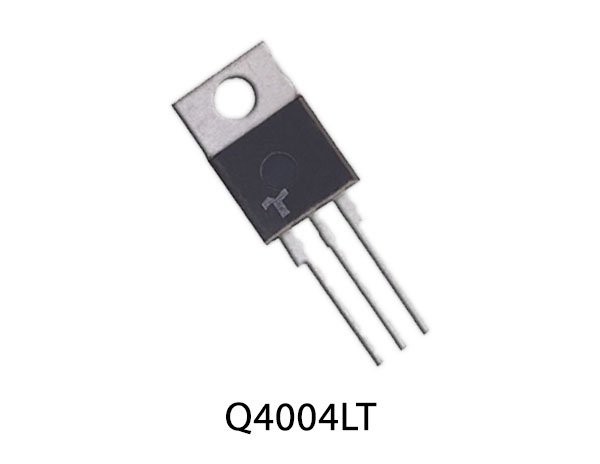

Q4004LT-4A-400V-TRIAC

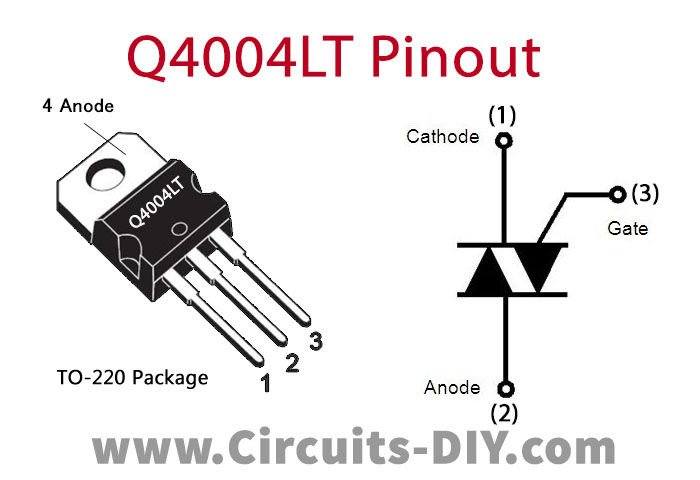

Q4004LT Pinout

Q4004LT-Pinout

Q4004LT Pin Configuration

Pin NoPin Name
1Cathode
2Anode
3Gate

Q4004LT Features

  • RoHS Compliant
  • Glass – passivated junctions
  • Voltage capability up to 600 V
  • Surge capability up to 200 A

Application

  • AC solid-state switches
  • Phase control applications
  • Light dimmers
  • Industrial Power tools
  • Home/Brown goods and white goods appliances.

You can download this datasheet for Q4004LT 4A 400V TRIAC – Datasheet from the link given below:
