OPA134 series are ultra-low distortion, low noise operational amplifiers fully specified for audio applications. A true FET input stage is also incorporated to provide superior sound quality and speed for exceptional audio performance. This in combination with high output drive capability and excellent dc performance allows use in a wide variety of demanding applications. The IC also offers many different features such as high input impedance and high noise immunity.
Audio Operational Amplifier
An audio power amplifier is an electronic amplifier that amplifies low-power audio signals such as, the signal from a radio receiver or an electric guitar to a level that is strong enough for driving loudspeakers or headphones. Different kinds of sound systems such as sound reinforcement systems, public address, home audio systems & musical instrument amplifiers like guitar amplifiers use different types of audio amplifiers.

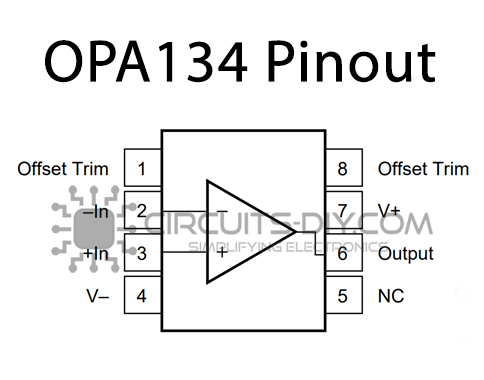

OPA134 Pinout
OPA134 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | OFFSET TRIM 1 | Offset Trim Pin 1 |
| 2 | INV-INPUT | Inverting Input Of Amplifier |
| 3 | NON-INV-INPUT | Non Inverting Input Of Amplifier |
| 4 | V- | Negative Power Supply |
| 5 | NC | No Connection |
| 6 | OUTPUT | Output Of Amplifier |
| 7 | V+ | Positive Power Supply |
| 8 | OFFSET TRIM 2 | Offset Trim Pin 2 |
OPA134 Features
- SUPERIOR SOUND QUALITY
- ULTRA LOW DISTORTION: 0.00008%
- LOW NOISE: 8nV/√Hz
- TRUE FET-INPUT: IB = 5pA
- HIGH SPEED:
- SLEW RATE: 20V/µ
- BANDWIDTH: 8MHz
- HIGH OPEN-LOOP GAIN: 120dB (600Ω)
- WIDE SUPPLY RANGE: ±2.5V to ±18V
- −55°C to +125°C: 250 pA maximum
- High common-mode rejection: 114 dB minimum
- Extended industrial temperature range: −40°C to +85°C
- SINGLE, DUAL, AND QUAD VERSIONS
Application
- PROFESSIONAL AUDIO AND MUSIC
- LINE DRIVERS
- LINE RECEIVERS
- MULTIMEDIA AUDIO
- ACTIVE FILTERS
- PREAMPLIFIERS
- INTEGRATORS
- CROSSOVER NETWORKS
OPA134 Datasheet
You can download this datasheet for OPA134 Single Audio Op-Amp from the link given below:
