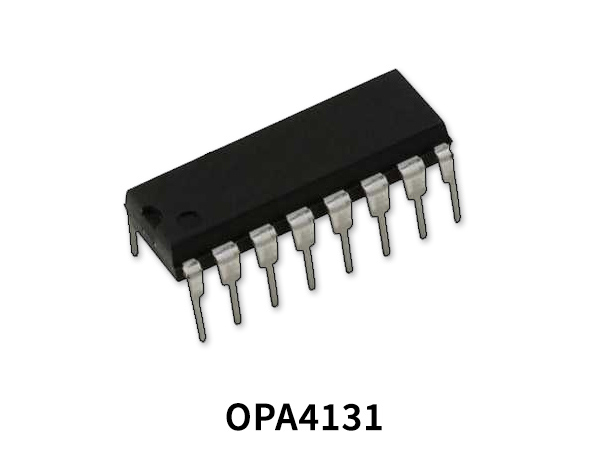

OP4131 General Purpose FET-Input Op-Amp – Datasheet

2,686 views

OP4131 series of FET-input op amps provides high performance at low cost. Single, dual, and quad versions in industry-standard pinouts allowing cost-effective design options. The IC has range of working conditions a wide range of working voltages, and possesses direct interfacing capability with almost every PMOS, CMOS, and NMOS device. Moreover, the IC offers a wide array of features such as high noise immunity, ESD barring/reduction, and exceptionally low power dissipation.

Operational Amplifier

Operational Amplifiers are basically voltage amplifying devices designed to be used with components like capacitors and resistors. They serve as the core part of any analog device. Feedback components like capacitors and resistors are used to determine the operation of the amplifier. The amplifier can perform many different operations (resistive, capacitive, or both), giving it the name Operational Amplifier. Op-amps are linear devices that are ideal for DC amplification and are used often in signal conditioning, filtering or other mathematical operations

OPA4131 Pinout

OPA4131 Pin Configuration

Pin NoPin NameDescription
1OUT AOutput Of Amplifier A
2INV-INPUT AInverting Input Of Amplifier A
3NON-INV-INPUT ANon Inverting Input Of Amplifier A
4V+Positive Power Supply
5NON-INV-INPUT BNon Inverting Input Of Amplifier B
6INV-INPUT BInverting Input Of Amplifier B
7OUT BOutput Of Amplifier B
8OUT COutput Of Amplifier C
9INV-INPUT CInverting Input Of Amplifier C
10NON-INV-INPUT CNon Inverting Input Of Amplifier C
11V-Negative Power Supply
12NON-INV-INPUT DNon Inverting Input Of Amplifier D
13INV-INPUT DInverting Input Of Amplifier D
14OUT DOutput Of Amplifier D

OPA4131 Features

  • FET INPUT: IB = 50pA max
  • LOW OFFSET VOLTAGE: 750µV max
  • WIDE SUPPLY RANGE: ±4.5V to ±18V
  • SLEW RATE: 10V/µs
  • WIDE BANDWIDTH: 4MHz
  • EXCELLENT CAPACITIVE LOAD DRIVE

Application Information

  •  Low Noise Amplifier
  • Buffer Amplifier
  • Analog Switch
  • Chopper
  • Current Limiter

OP4131 Datasheet

You can download this datasheet for OP4131 General Purpose FET-Input Op-Amp from the link given below:
