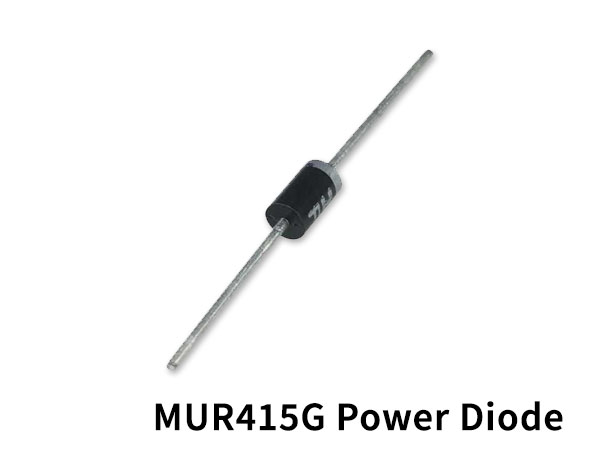

MUR415G 4A & 150V Ultrafast Recovery Diode is a series of switch mode power rectifiers and is designed for use in switching power supplies, inverters and as free wheeling diodes.
MUR415G Pinout
MUR415G Features
- Ultrafast 25 ns, 50 ns and 75 ns Recovery Times
- 175°C Operating Junction Temperature
- Low Forward Voltage
- Low Leakage Current
- High Temperature Glass Passivated Junction
- Reverse Voltage to 600 V
- Shipped in Plastic Bags, 500 per Bag
- Available in Tape and Reel, 1500 per Reel, by Adding a “RL’’ Suffix to the Part Number
- Pb−Free Packages are available
MUR415G Specification
| Mfr Package Description | Case 267-03, 2 Pin |
| Diode Type | Rectifier Diode |
| Application | Ultra Fast Recovery Power |
| Diode Element Material | Silicon |
| Forward Voltage-Max (VF) | 0.71 V |
| Non-rep Pk Forward Current-Max | 125.0 A |
| Operating Temperature-Min | -65.0 Cel |
| Operating Temperature-Max | 175.0 Cel |
| Output Current-Max | 4.0 A |
| Peak Reflow Temperature (Cel) | 260 |
| Rep Pk Reverse Voltage-Max | 150.0 V |
| Reverse Recovery Time-Max | 0.035 µs |
| Time Peak Reflow Temperature-Max (s) | 40 |
Application
- switching power supplies
- inverters
- free wheeling diodes
You can download this datasheet for MUR415G 4A 150V Ultra-Fast Recovery Diode from the link given below:
