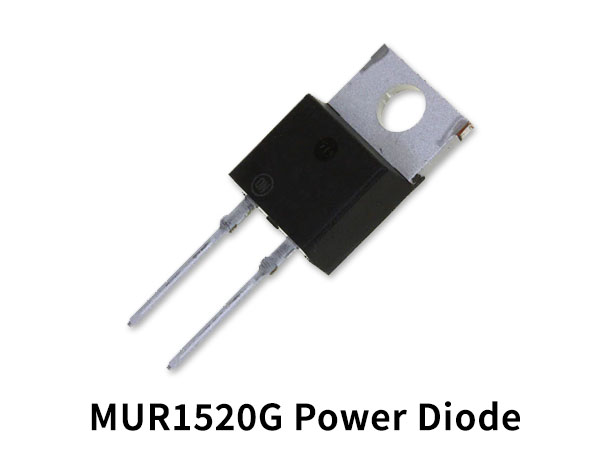

MUR1520G 15A & 200V Ultrafast Recovery Diode is a series of switch mode power rectifiers and is designed for use in switching power supplies, inverters and as free wheeling diodes.
MUR1520G Pinout
MUR1520G Features
- Low forward voltage drop
- High current capability
- Low reverse leakage current
- High surge current capability
MUR1520G Specification
| Mfr Package Description | Case 221B-04, 2 Pin |
| Diode Type | Rectifier Diode |
| Application | Ultra Fast Recovery Power |
| Diode Element Material | Silicon |
| Forward Voltage-Max (VF) | 1.0 V |
| Non-rep Pk Forward Current-Max | 200.0 A |
| Operating Temperature-Min | -65.0 Cel |
| Operating Temperature-Max | 175.0 Cel |
| Output Current-Max | 15.0 A |
| Peak Reflow Temperature (Cel) | 260 |
| Rep Pk Reverse Voltage-Max | 200.0 V |
| Reverse Recovery Time-Max | 0.035 µs |
| Time Peak Reflow Temperature-Max (s) | 40 |
Application
- Automotive Inverters and Solar Inverters
- Plating Power Supply, SMPS, Motor Control and UPS
- Switching Power Supply
- Power Switching Circuits
- General Purpose
You can download this datasheet for MUR1520G 15A 200V Ultra-Fast Recovery Diode from the link given below:
