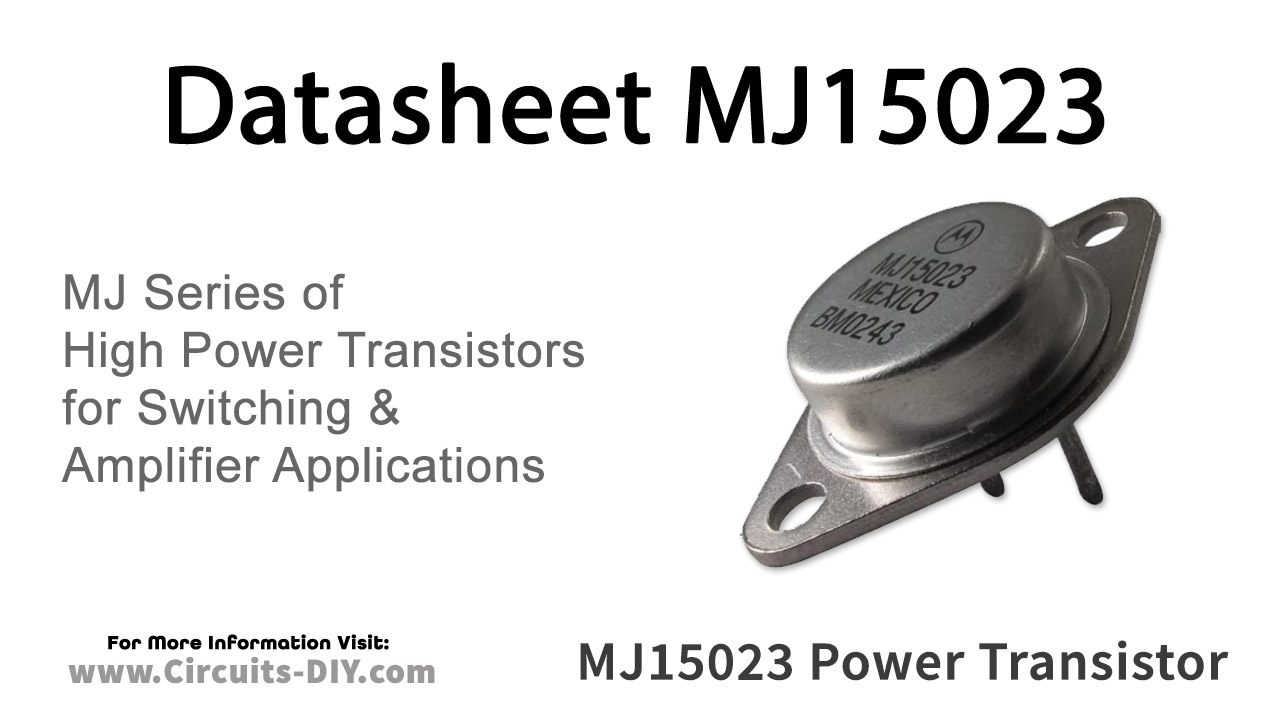

The MJ15023 PNP Power Base power transistors designed for high power audio, disk head positioners and other linear application
MJ15023 Pinout
MJ15023 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Base |
| 2 | Emitter |
| 3 | Collector |
MJ15023 Key Features
- High Safe Operating Area (100% Tested) — 2 A @ 80 V
- High DC Current Gain — hFE = 15 (Min) @ IC = 8 A
- Type Designator: MJ15023
- Material of Transistor: Si
- Polarity: PNP
- Maximum Emitter-Base Voltage |Veb|: 7 V
MJ15023 Specification
| Ic (mA) | Pd | Vce (max) | Vcb | hfe | @Ic | Ft |
|---|---|---|---|---|---|---|
| 16 | 250 | 200 | 350 | 15-60 | 8000 | 4 |
MJ15023 Equivalent/Alternate:
- MJ10000, MJ10001, MJ10002, MJ10003, MJ10004, MJ15022
Application
- High Power Audio
- Disk Head Positioner
You can download this datasheet for MJ15023 PNP Power Transistor from the link given below:
