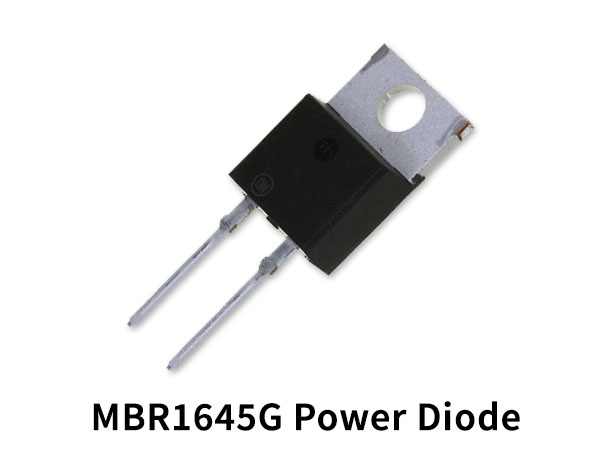

MBR1645 16A 45V Schottky Barrier Diode – Datasheet

1,908 views

MBR1645 is 16A 45V Schottky Barrier Diode has many useful applications from rectification, signal conditioning and switching, through to TTL and CMOS logic gates due mainly to their low power and fast switching speeds.

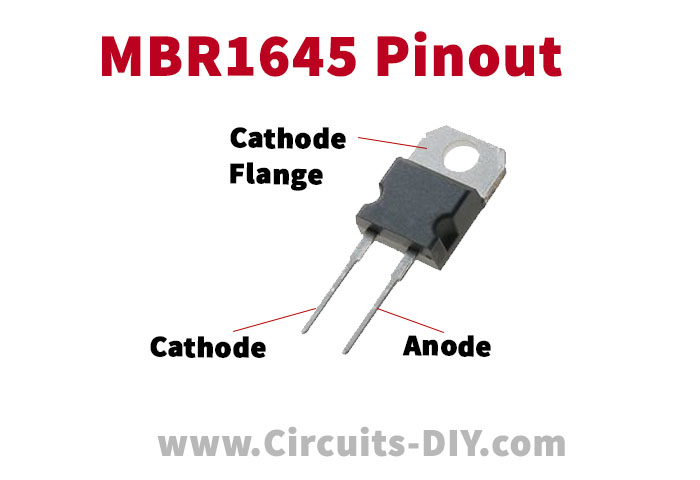

MBR1645G Pinout

MBR1645G Features

  • Guardring for Stress Protection Low Forward Voltage
  • 150°C Operating Junction Temperature
  • Guaranteed Reverse Avalanc

MBR1645G Specification

Mfr Package DescriptionPlastic Package-2
Diode TypeRectifier Diode
ApplicationEfficiency
Diode Element MaterialSilicon
Forward Voltage-Max (VF)0.63  V
Non-rep Pk Forward Current-Max150.0  A
Operating Temperature-Min-55.0  Cel
Operating Temperature-Max150.0  Cel
Output Current-Max16.0  A
Peak Reflow Temperature (Cel)255
Rep Pk Reverse Voltage-Max45.0  V

You can download this datasheet for MBR1645 16A 45V Schottky Barrier Diode from the link given below:
