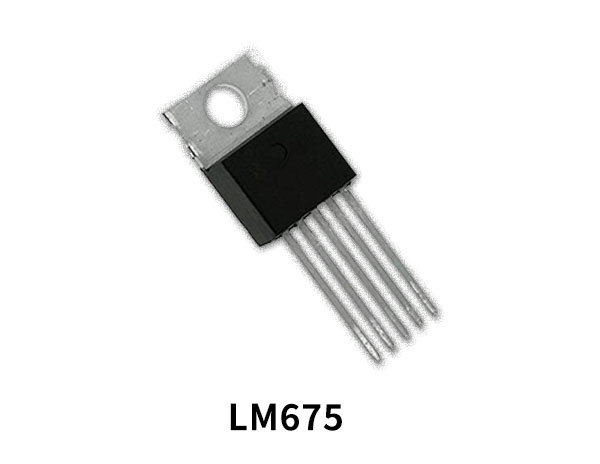

LM675 Power Op-Amp – Datasheet

4,301 views

The LM675 is a monolithic power operational amplifier featuring wide bandwidth and low input offset voltage, making it equally suitable for AC and DC applications The LM675 is capable of delivering output currents in excess of 3 amps, operating at supply voltages of up to 60V. The device overload protection consists of both internal current limiting and thermal shutdown. The amplifier is also internally compensated for gains of 10 or greater.

LM675 Pinout

LM675 Pin Configuration

Pin NoPin NameDescription
1NON-INV-INNon-Inverting Input Pin
2INV-INInverting Input Pin
3-VEENegative Emitter supply,
4OUTPUTOutput Pin
5VCCSupply Voltage

LM675 Key Features

  • 3A Current Capability
  • AVO Typically 90 dB
  • 5.5 MHz Gain Bandwidth Product
  • 8 V/μs Slew Rate
  • Wide Power Bandwidth 70 kHz
  • 90 dB Ripple Rejection
  • Plastic Power Package TO-220

Application

  • High-Performance Power Op-Amp
  • Bridge Amplifiers
  • Motor Speed Controls
  • Servo Amplifiers
  • Instrument Systems

You can download this datasheet for LM675 Power Op-Amp – Datasheet from the link given below:
