LM6132 Low Power 10MHz Dual Operational Amplifier

Contents hide

LM6132 comprises of two industry-standard, frequency compensated high gain, low power operational amplifier. LM6132 can be driven at voltages that exceed both power supply rails, thus eliminating concerns over exceeding the common-mode voltage range. The rail-to-rail output swing capability provides the maximum possible dynamic range at the output. This is particularly important when operating on low supply voltages. The LM6132/34 can also drive large capacitive loads without oscillating. The IC is available in an 8 – pin hermetically sealed dual inline IC packaging (DIP). LM6132 possesses direct compatibility with almost every CMOS, NMOS, and PMOS device.

Operational Amplifier

Operational amplifiers are simple electronic circuits that can boost a weak signal to a level of higher amplitude. An operational amplifier is generally used in applications such as home entertainment systems, megaphones, speakers, and microphones, etc. An op-amp usually operates with a number of feedback components that determine the resulting function or “operation” of the amplifier and by virtue of the different feedback, configurations whether resistive, capacitive, or both.

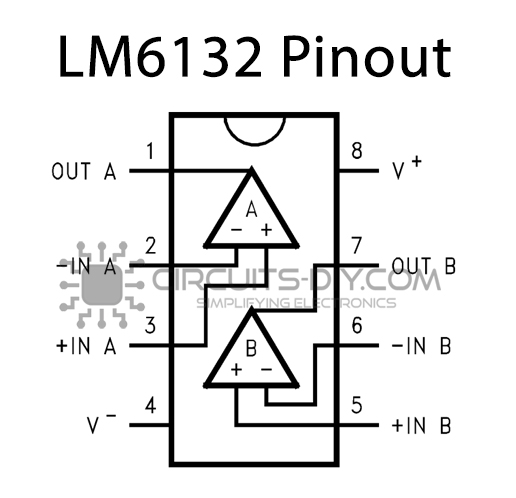

LM6132 Pinout

LM6132 Pin Configuration

Pin No	Pin Name	Description
1	OUT A	Output Of Amplifier A
2	INV-INPUT A	Inverting Input Amplifier A
3	NON-INV-INPUT A	Non Inverting Input Amplifier A
4	V-	Negative Power Supply
5	NON-INV-INPUT B	Non Inverting Input Amplifier B
6	INV-INPUT B	Inverting Input Amplifier B
7	OUT B	Output Of Amplifier B
8	V+	Positive Power Supply
