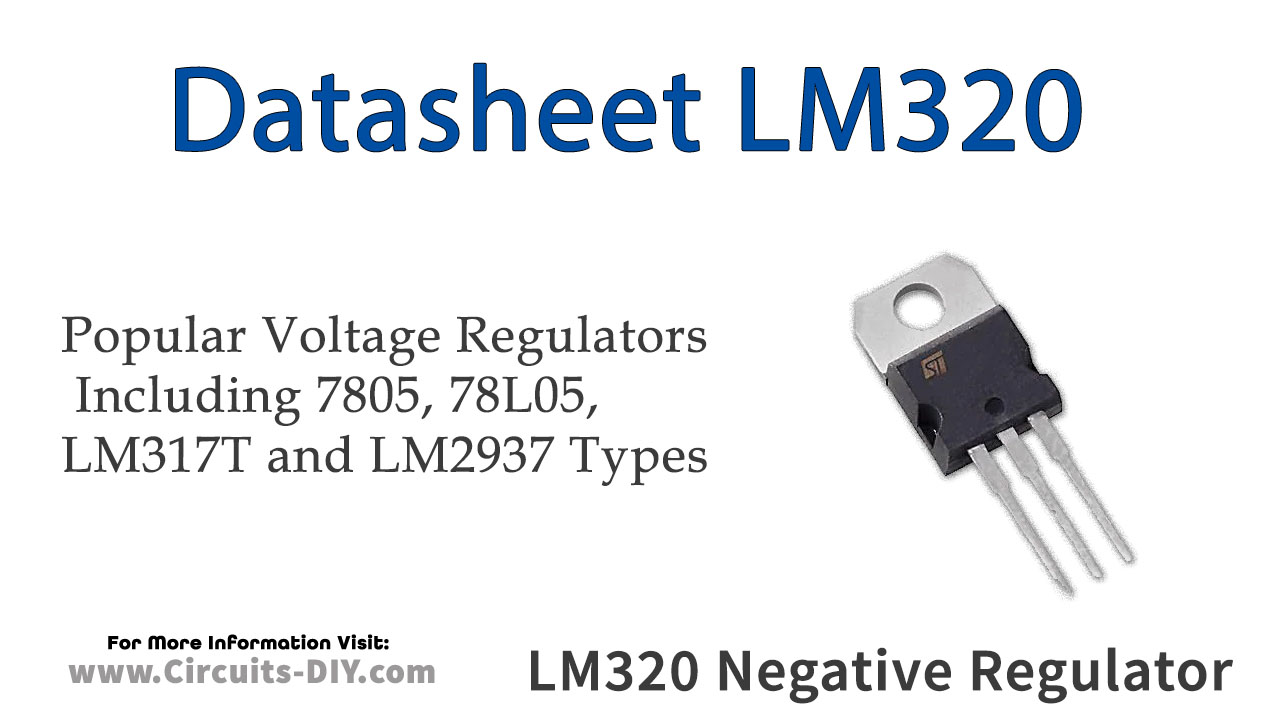

The LM320 is a three-terminal negative regulator with a fixed output voltage of b5V, and up to 1.5A load current capability. The LM320 needs only one external capacitor at the output, making them easy to apply. An exceptional effort has been made to make the LM320 is immune to overload conditions. The regulator is current limiting and independent of temperature when combined with thermal overload protection.
LM320 Pinout
LM320 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | GND |
| 2 | IN |
| 3 | OUT |
LM320 Key Features
- Preset output voltage error less than g3%
- Preset current limit
- Internal thermal shutdown
- Operates with input-output voltage differential down to 1V
- Excellent ripple rejection
- Low temperature drift
- Easily adjustable to higher output voltage
Application
- It is primarily intended for fixed output voltage applications
You can download this datasheet for LM320 5V 1.5A Negative Voltage Regulator – Datasheet from the link given below:
