LM2587 Adjustable 5A Flyback Voltage Regulator – Datasheet

3,124 views

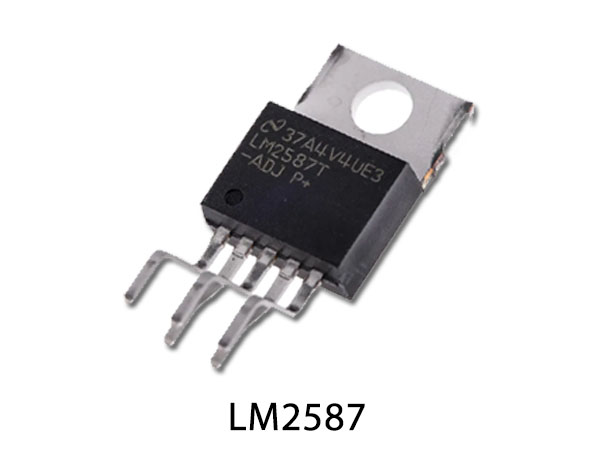

The LM2587 regulator is a monolithic integrated circuit are specifically designed for flyback, step-up (boost), and forward converter applications. The device is available in 4 different output voltage versions: 3.3V, 5.0V, 12V, and adjustable. Requiring a minimum number of external components, this regulator is cost-effective, and simple to use. Included in the datasheet are typical circuits of boost and flyback regulators. Also listed are selector guides for diodes and capacitors and a family of standard inductors and flyback transformers designed to work with these switching regulators.

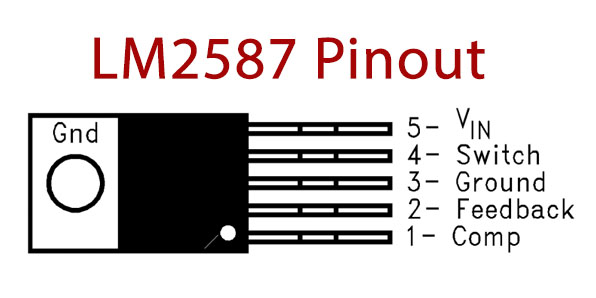

LM2587 Pinout

LM2587 Pin Configuration

Pin NoPin NameDescription
1COMP:Compensation Pin
2FBFeedBack Pin
3GNDGround Pin
4SWSwitch Pin
5VINInput Voltage Pin

LM2587 Key Features

  • Requires few external components
  • Family of standard inductors and transformers
  • NPN output switches 5.0A, can stand off 65V
  • Wide input voltage range: 4V to 40V
  • Current-mode operation for improved transient response, line regulation, and current limit
  • 100 kHz switching frequency
  • Internal soft-start function reduces in-rush current during start-up

Application

  • Flyback regulator
  • Multiple-output regulator
  • Simple boost regulator
  • Forward converter

You can download this datasheet for LM2587 Adjustable 5A Flyback Voltage Regulator – Datasheet from the link given below:
