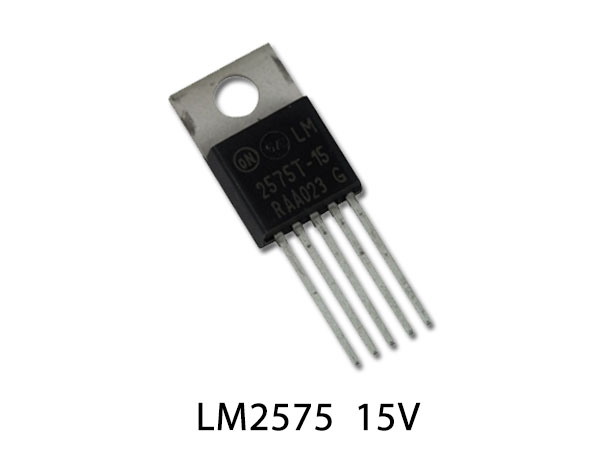

The LM2575 15V 1A Step-Down Voltage Regulator is a monolithic integrated circuit that provides all the active functions for a step-down (buck) switching regulator, capable of driving a 1A load with excellent line and load regulation. This device is available in the fixed output voltage of 15V and an adjustable output version. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2575 offers a high-efficiency replacement for the popular three-terminal linear regulator. Because of its high efficiency, the copper traces on the printed circuit board are normally the only heat sinking needed

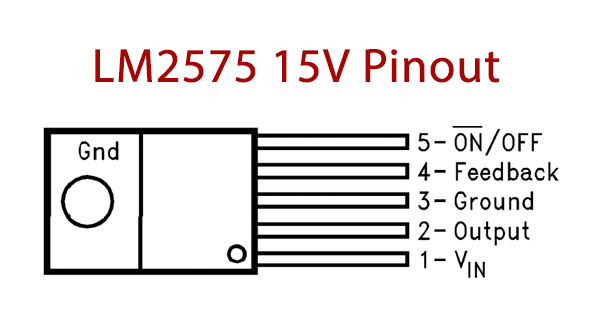

LM2575 Pinout
LM2575 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | Vin | Input Voltage Pin |
| 2 | OUT | Output Pin |
| 3 | GND | Ground Pin |
| 4 | FB | Feedback Pin |
| 5 | ON’/OFF | Complement On/Off Pin |
LM2575 Key Features
- 3.3V, 5V, 12V, 15V, and adjustable output versions
- Adjustable version output voltage range,
- 1.23V to 37V (57V for HV version) ±4% max over
- line and load conditions
- Guaranteed 1A output current
- Wide input voltage range, 40V up to 60V for HV version
- Requires only 4 external components
- 52 kHz fixed frequency internal oscillator
Application
- Simple high-efficiency step-down (buck) regulator
- Efficient pre-regulator for linear regulators
- On-card switching regulators
- Positive to negative converter (Buck-Boost)
You can download this datasheet for LM2575 15V 1A Step-Down Voltage Regulator – Datasheet from the link given below:
