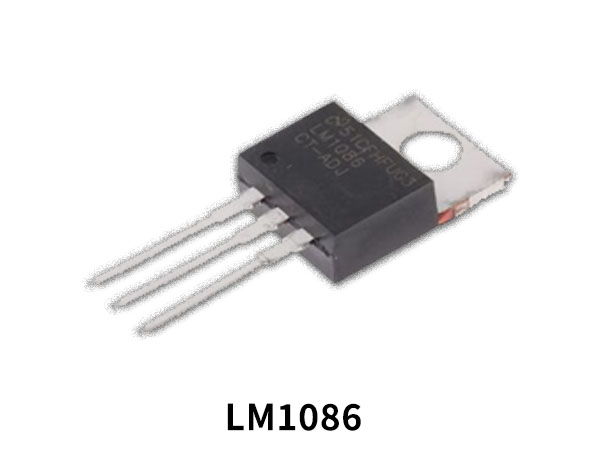

LM1086 Adjustable 1.5A Low-Dropout Positive Regulator – Datasheet

The LM1086 is a low dropout positive voltage regulator with a maximum dropout of 1.5A of load current. The LM1086 is available in an adjustable version, which can set the output voltage with only two external resistors. The fixed versions integrate the adjusted resistors. The LM1086 circuit includes a zener trimmed bandgap reference, current limiting, and thermal shutdown. The LM1086 is available in TO-220 and TO-263 packages.

LM1086 Pinout

LM1086 Pin Configuration

Pin No	Pin Name
1	INPUT
2	OUTPUT
3	ADJ/GND

LM1086 Key Features

• Current Limiting and Thermal Protection
• Output Current 1.5A
• Line Regulation 0.015% (typical)
• Load Regulation 0.1% (typical)

Application

• SCSI-2 Active Terminator
• High Efficiency Linear Regulators
• Battery Charger
• Post Regulation for Switching Supplies
• Constant Current Regulator
• Microprocessor Supply

You can download this datasheet for LM1086 Adjustable 1.5A Low-Dropout Positive Regulator – Datasheet from the link given below:
