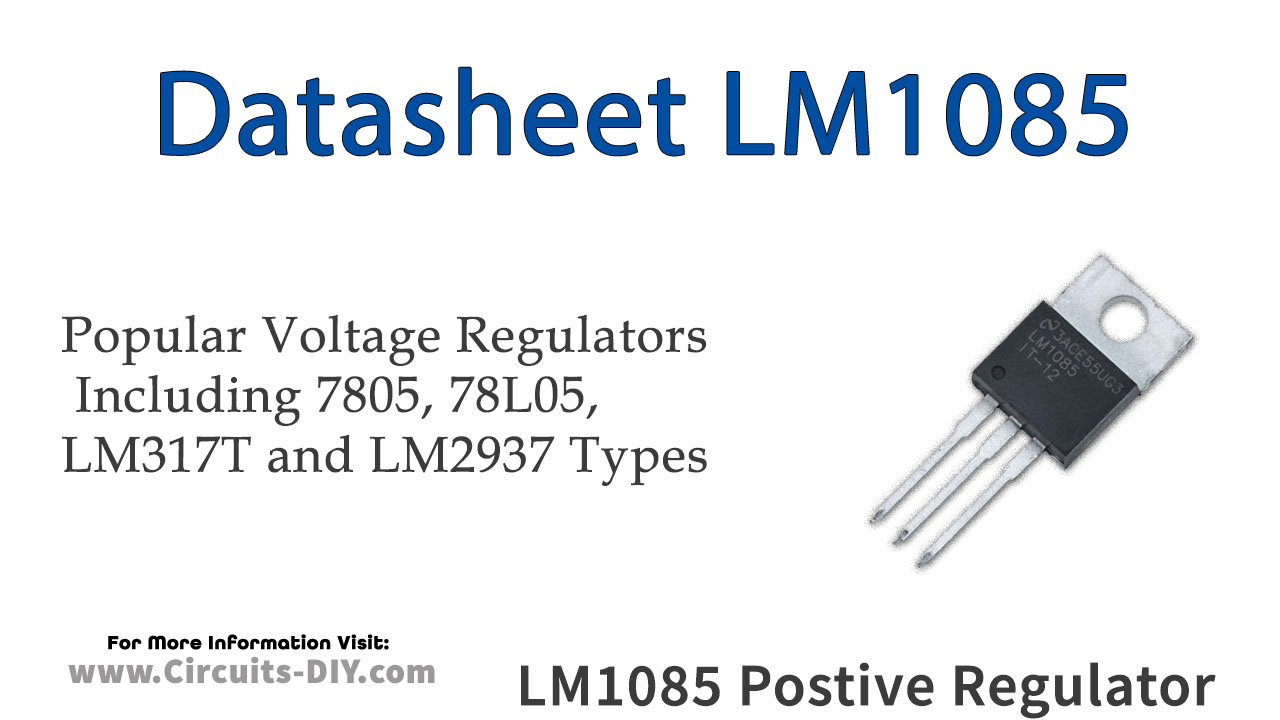

The LM1085 is a low dropout positive voltage regulator with a maximum dropout of 1.5V at 3A of load current. The LM1085 is available in an adjustable version, which can set the output voltage with only two external resistors. It is also available in the fixed current: 3A. The fixed versions integrate the adjusted resistors. The LM1085 circuit includes a zener trimmed bandgap reference, current limiting, and thermal shutdown. The LM1085 is available in TO-220 and TO-263 packages.

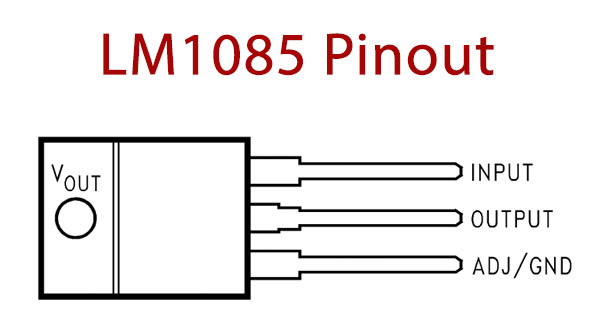

LM1085 Pinout
LM1085 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | INPUT |
| 2 | OUTPUT |
| 3 | ADJ/GND |
LM1085 Key Features
- Available in 3.3V, 5.0V, 12V and Adjustable Versions
- Current Limiting and Thermal Protection
- Output Current 3A
- Line Regulation 0.015% (typical)
- Load Regulation 0.1% (typical)
Application
- High Efficiency Linear Regulators
- Battery Charger
- Post Regulation for Switching Supplies
- Constant Current Regulator
- Microprocessor Supply
You can download this datasheet for LM1085 Adjustable 3A Low-Dropout Positive Regulator – Datasheet from the link given below:
