LF398 Datasheet Sample and Hold Circuit

Contents hide

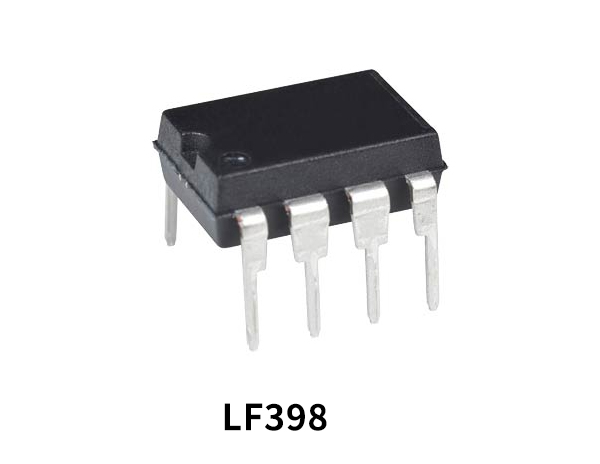

LF398 is a monolithic sample and hold IC that uses bipolar field effect technology (BI-FET) technology to obtain ultrahigh DC accuracy with fast acquisition of signal and low droop rate. Operating as a unity-gain follower, DC gain accuracy is 0.002% typical and acquisition time is as low as 6 µs to 0.01%. A bipolar input stage is used to achieve low offset voltage and wide bandwidth. Input offset adjust is accomplished with a single pin and does not degrade input offset drift. The wide bandwidth allows the LF398 to be included inside the feedback loop of 1-MHz operational amplifiers without having stability problems. The IC offers a wide range of features such as high noise immunity, ESD barring, and excellent thermal cycling.

What is a Sample & Hold Circuit?

A sample and hold circuit is a simple electronic configuration that is capable of sampling a signal applied at it’s input terminals. The circuit can also hold the sample value sample for a particular time interval hence the name sample and hold. The basic configuration for a sample and hold circuit is an analog switch (JFET, BiMOS, CMOS) and a capacitor. Sample and hold circuits have an integral importance in the telecommunication industry; where, these circuits are used to troubleshoot discrepancies occurring in signal demodulation.

LF398 Pinout

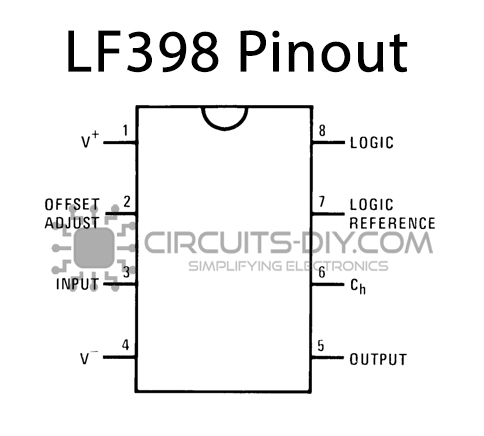

LF398 Pin Configuration

Pin No	Pin Name	Description
1	V+	Positive Power Supply
2	OFFSET ADJUST	Offset Adjust Pin
3	INPUT	Input Pin
4	V-	Negative Power Supply
5	OUTPUT	Output Pin
6	Ch	Output Hold Capacitor
7	LOGIC REF	Logic Reference Pin
8	LOGIC	Logic Pin
