L4004F51 4A 400V TRIAC – Datasheet

1,967 views

L4004F51 4 Amp bi-directional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays.

L4004F51 4A 400V TRIAC

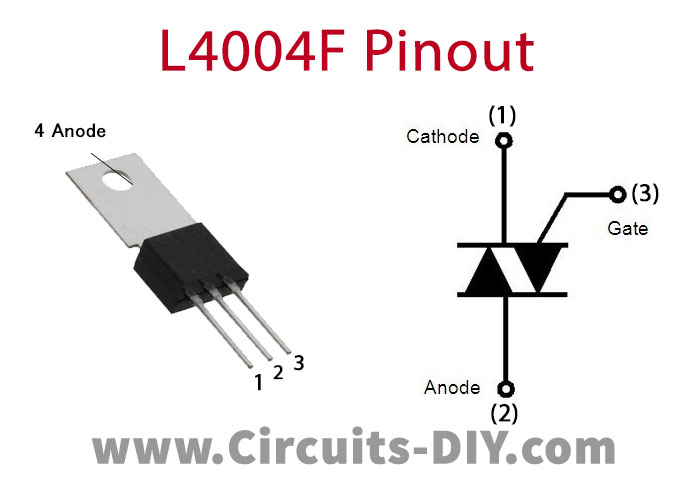

L4004F Pinout

L4004F Pinout

L4004F Pin Configuration

Pin NoPin Name
1Cathode
2Anode
3Gate

L4004F51 Features

  • RoHS Compliant Electrically-isolated packages
  • Glass-passivated junctions ensure long device reliability and parameter stability
  • Voltage capability — up to 1000 V
  • Surge capability — up to 55 A
  • Four-quadrant gating guaranteed

L4004F51 Specification

TypeVdsm (V)It (A)Igt (mA)Vgt (V)
L4004F514004.0251.3

Application

  • AC solid-state switches
  • Power tools
  • Home/brown goods and white goods appliances.

You can download this datasheet for L4004F51 4A 400V TRIAC – Datasheet from the link given below:
