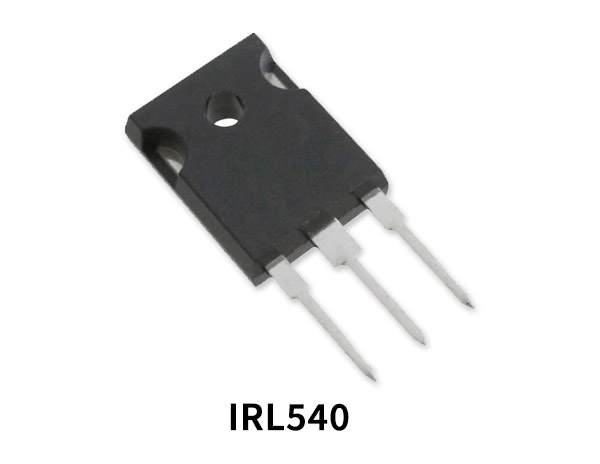

IRL540 36A 100V N-Channel Power MOSFET – Datasheet

3,492 views

IRL540 36A 100V N-Channel Power MOSFET is advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry

IRL540 Pinout

IRL540 Pin Configuration

Pin NoPin Name
1Gate
2Drain
3Source

IRL540 Key Features

  • Logic-Level Gate Drive
  • Advanced Process Technology
  • Dynamic dv/dt Rating
  • 175°C Operating Temperature
  • Fast Switching
  • Fully Avalanche Rated
  • Type Designator: IRL540
  • Type of Transistor: MOSFET
  • Type of Control Channel: N -Channel

IRL540 Specification

Id (A)Pd (W)Vds (max)Rds (on)Vgs (max)
361401000.04416

IRL540 Equivalent/Alternative

  • IRL1004, IRL1004L, IRL1004LPBF, IRL1004PBF, IRL1004S, IRL1004SPBF, IRL1104

Application

  • General Purpose Switching Applications

You can download this datasheet for IRL540 36A 100V N-Channel Power MOSFET from the link given below:
