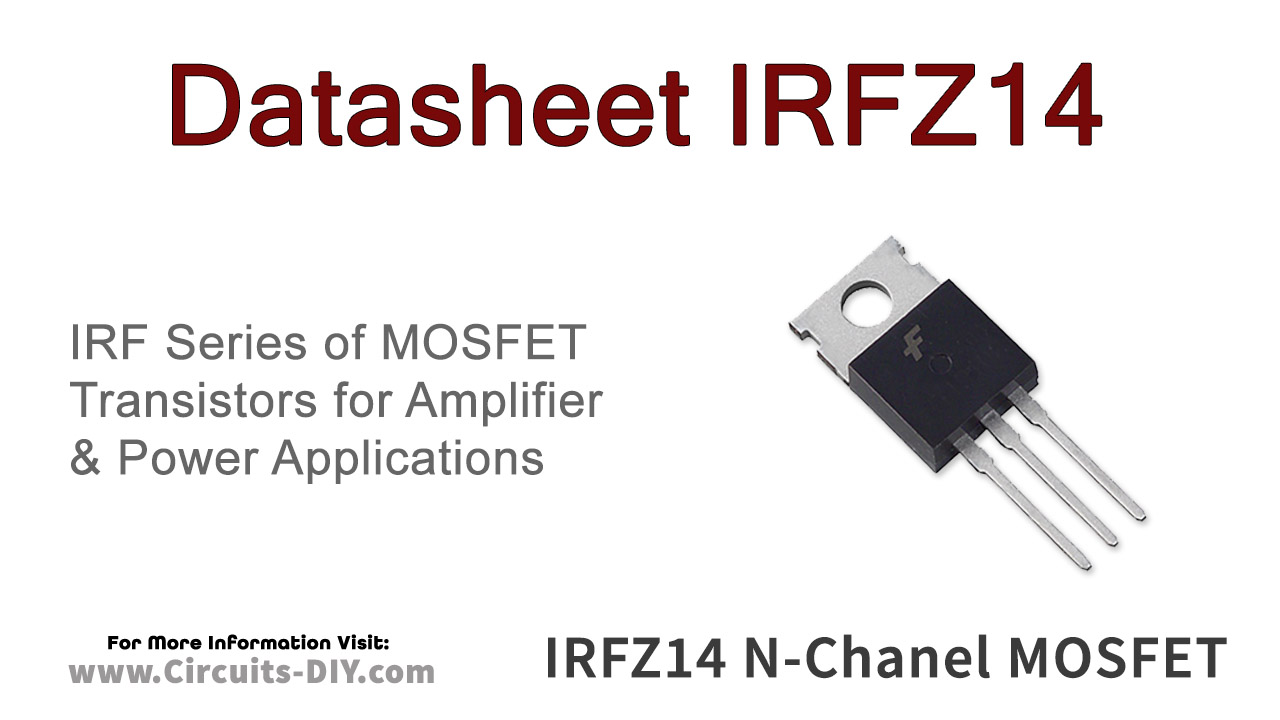

IRFZ14 10A 60V N-Channel Power MOSFET provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry
IRFZ14 Pinout
IRFZ14 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Gate |
| 2 | Drain |
| 3 | Source |
IRFZ14 Key Features
- Dynamic dv/dt Rating
- 175 C Operating Temperature
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Type Designator: IRFZ14
- Type of Transistor: MOSFET
- Type of Control Channel: N -Channel
IRFZ14 Specification
| Id (A) | Pd (W) | Vds (max) | Rds (on) | Vgs (max) |
|---|---|---|---|---|
| 10 | 43 | 60 | 0.2 | 20 |
IRFZ14 Equivalent/Alternative
- IRF044, IRF044SMD, IRF054, IRF054SMD, IRF100B201
Application
- Commercial-Industrial Applications
You can download this datasheet for IRFZ14 10A 60V N-Channel Power MOSFET from the link given below:
