IRFR320 3.1A 400V N-Channel Power MOSFET – Datasheet

2,365 views

IRFR320 3.1A 400V N-Channel Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU/SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface mount applications

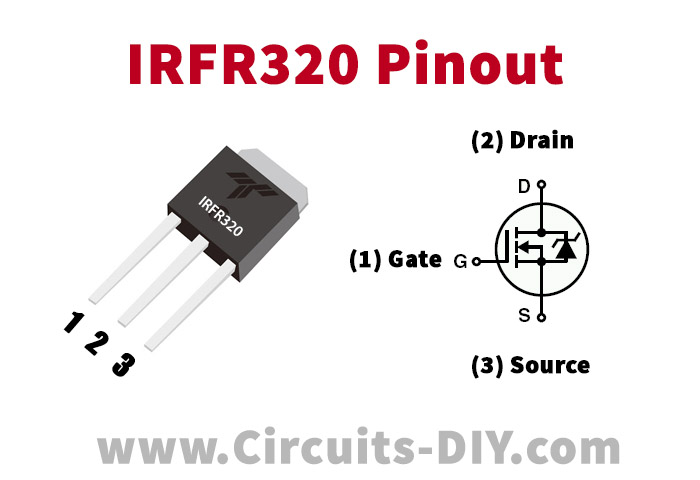

IRFR320 Pinout

IRFR320 Pin Configuration

Pin NoPin Name
1Gate
2Drain
3Source

IRFR320 Key Features

  • Dynamic dV/dt Rating
  • Repetitive Avalanche Rated
  • Surface Mount (IRFR320/SiHFR320)
  • Straight Lead (IRFU320/SiHFU320)
  • Available in Tape and Reel
  • Fast Switching
  • Ease of Paralleling
  • Type Designator: IRFR320
  • Type of Transistor: MOSFET
  • Type of Control Channel: N -Channel

IRFR320 Specification

Id (A)Pd (W)Vds (max)Rds (on)Vgs (max)
3.1424001.820

IRFR320 EQUIVALENT/Alternative

  • IRF044, IRF044SMD, IRF054, IRF054SMD, IRF100B201

Application

  • Switching Voltage Regulators

You can download this datasheet for IRFR320 3.1A 400V N-Channel Power MOSFET from the link given below:
