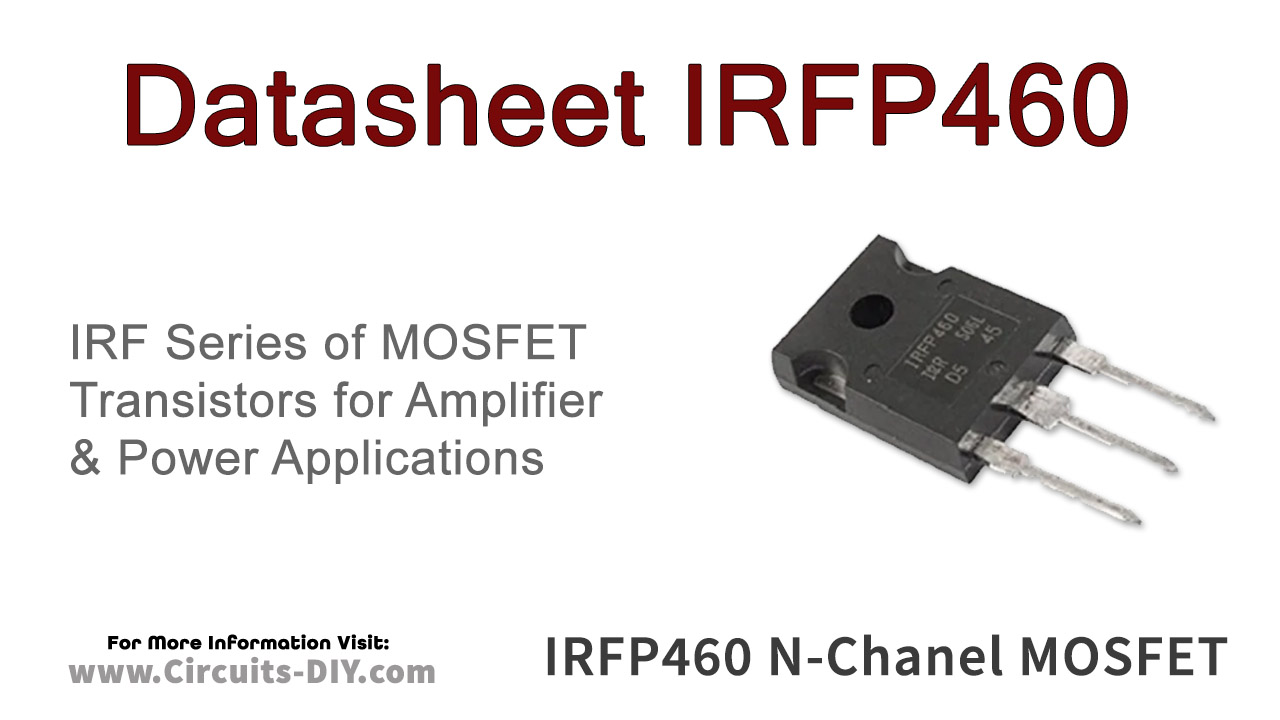

IRFP460 20A 500V N-Channel Power MOSFET – Datasheet

IRFP460 20A 500V N-Channel power MOSFET is designed using the company’s consolidated strip layout-based MESH OVERLAY process. This technology matches and improves the performances compared with standard parts from various sources

IRFP460 Pinout

IRFP460 Pin Configuration

Pin No	Pin Name
1	Gate
2	Drain
3	Source

IRFP460 Key Features

• Drain Current –ID= 20A@ TC=25℃
• Drain Source Voltage- : VDSS= 500V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 0.27Ω(Max)
• Fast Switching
• Minimum Lot-to-Lot variations for robust device performance and reliable operation
• Type Designator: IRFP460
• Type of Transistor: MOSFET
• Type of Control Channel: N -Channel

IRFP460 Specification

Id (A)	Pd (W)	Vds (max)	Rds (on)	Vgs (max)
20	280	500	0.27	10

IRFP460 Equivalent/Alternative

• IRF034, IRF044, IRF044SMD, IRF054, IRF054SMD, IRF100B201

Application

• High Current Switching
• Uninterruptable Power Supply (UPS)
• DC/DC Converters For Telecom, Industrial, And Lighting Equipment

You can download this datasheet for IRFP460 20A 500V N-Channel Power MOSFET from the link given below:
