IRFP240 20A 200V N-Channel Power MOSFET is advanced line of power MOSFET transistors. The efficient geometry and unique processing of this latest “State of the Art” design achieves: very low on-state resistance combined with high transconductance; superior reverse energy and diode recovery dv/dt capability. The HEXFET transistors also feature all of the well established advantages of MOSFETs such as voltage control, very fast switching, ease of paralleling and temperature stability of the electrical parameters. They are well suited for applications such as switching power supplies, motor controls, inverters, choppers, audio amplifiers and high energy pulse circuits

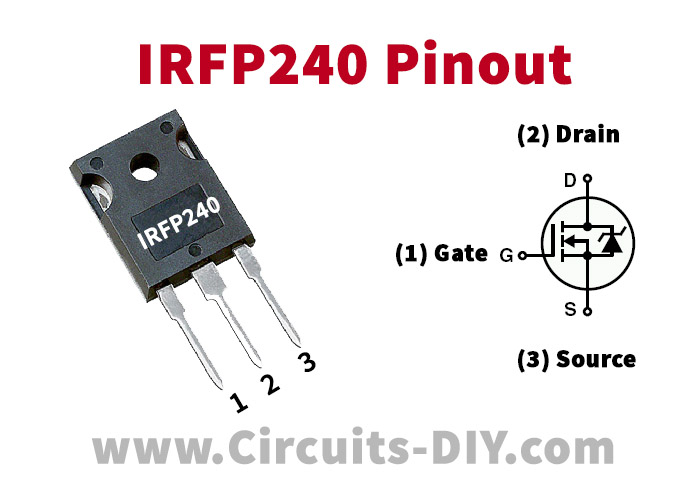

IRFP240 Pinout
IRFP240 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Gate |
| 2 | Drain |
| 3 | Source |
IRFP240 Key Features
- Dynamic dv/dt Rating
- Repetitive Avalanche Rated
- Isolated Central Mounting Hole
- Fast Switching
- Ease Of Paralleling
- Simple Drive Requirements
- Type Designator: IRF240
- Type of Transistor: MOSFET
- Type of Control Channel: N -Channel
IRFP240 Specification
| Id (A) | Pd (W) | Vds (max) | Rds (on) | Vgs (max) |
|---|---|---|---|---|
| 18 | 125 | 200 | 0.18 | 20 |
IRFP240 Equivalent/Alternative
- IRF034, IRF044, IRF044SMD, IRF054, IRF054SMD, IRF100B201
Application
- Switching Power Supplies
- Motor Controls
- Inverters
- Choppers
- Audio Amplifiers
- High Energy Pulse Circuits
You can download this datasheet for IRFP240 20A 200V N-Channel Power MOSFET from the link given below:
