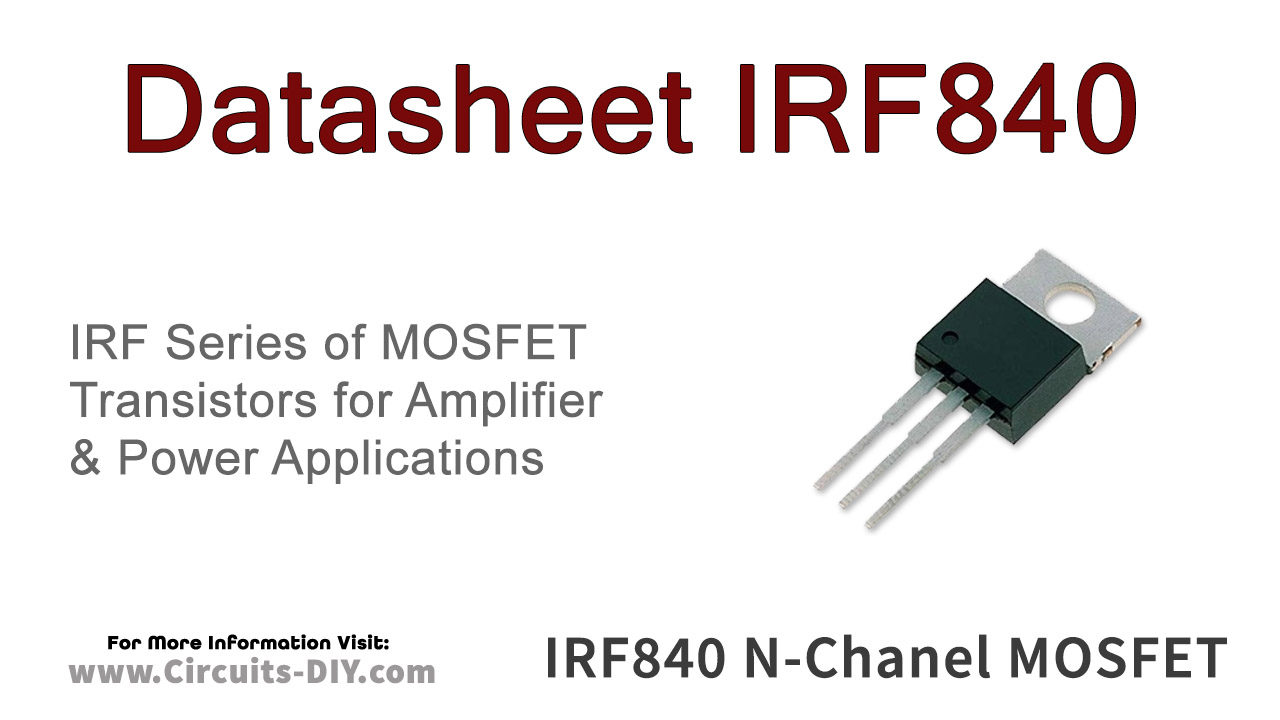

IRF840 8A 500V N-Channel power MOSFET is designed using the company’s consolidated strip layout-based MESH OVERLAY process. This technology matches and improves the performances compared with standard parts from various sources
IRF840 Pinout
IRF840 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Gate |
| 2 | Drain |
| 3 | Source |
IRF840 Key Features
- 8.0A, 500V, RDS(on) = 0.8Ω @VGS = 10 V
- Low gate charge ( typical 41 nC)
- Low Cross ( typical 35 pF)
- Fast switching
- 100% avalanche tested
- Improved dv/dt capability
- Type Designator: IRF840
- Type of Transistor: MOSFET
- Type of Control Channel: N -Channel
IRF840 Specification
| Id (A) | Pd (W) | Vds (max) | Rds (on) | Vgs (max) |
|---|---|---|---|---|
| 8 | 125 | 500 | 0.85 | 20 |
IRF840 Equivalent/Alternative
- IRF044, IRF044SMD, IRF054, IRF054SMD, IRF100B201, IRF100B202
Application
- DC-AC Converters For Welding Equipment
- Uninterruptible Power Supplies
- Motor Driver
You can download this datasheet for IRF840 8A 500V N-Channel Power MOSFET from the link given below:
