IRF5210 40A 100V P-Channel Power MOSFET – Datasheet

8,427 views

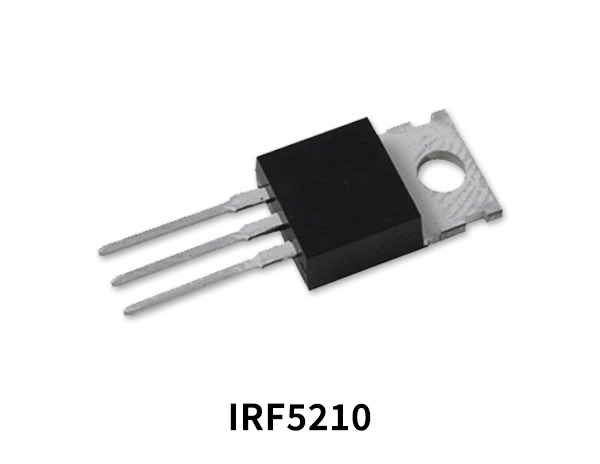

IRF5210 40A 100V P-Channel Power MOSFET is advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry

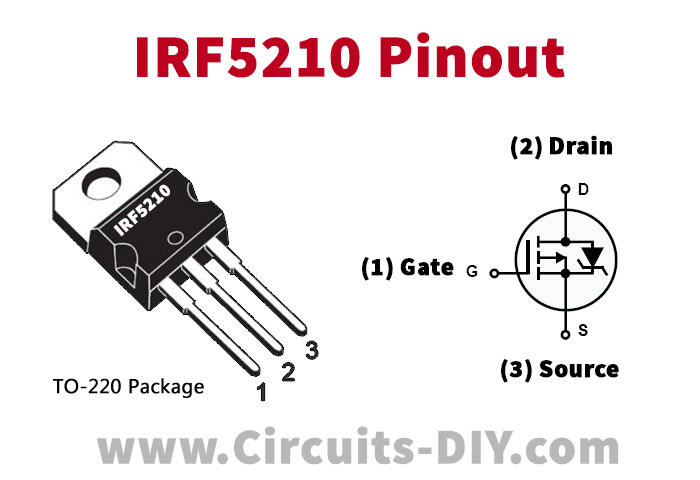

IRF5210 Pinout

IRF5210 Pin Configuration

Pin NoPin Name
1Gate
2Drain
3Source

IRF5210 Key Features

  • Advanced Process Technology
  • Ultra Low On-Resistance
  • Dynamic dv/dt Rating
  • 175°C Operating Temperature
  • Fast Switching
  • P-Channel
  • Fully Avalanche Rated
  • Type Designator: IRF5210
  • Type of Transistor: MOSFET
  • Type of Control Channel: P -Channel

IRF5210 Specification

Id (A)Pd (W)Vds (max)Rds (on)Vgs (max)
402001000.0610

IRF5210 Equivalent/Alternative

  • IRF034, IRF044, IRF044SMD, IRF054, IRF054SMD, IRF100B201

Application

  • Switching applications

You can download this datasheet for IRF5210 40A 100V P-Channel Power MOSFET from the link given below:
