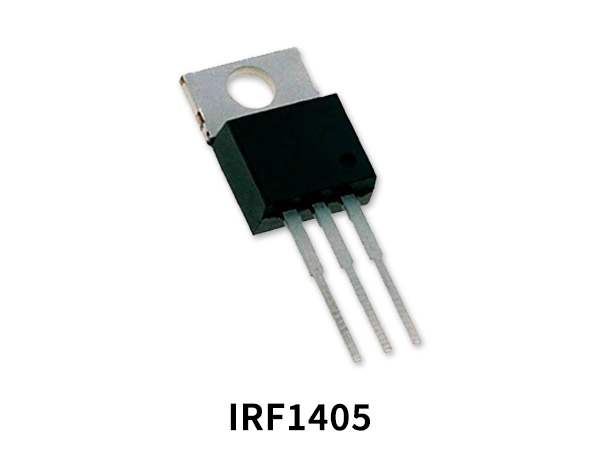

IRF1405 169A 55V N-Channel Power MOSFET is Specifically designed for Automotive applications and Additional features of this HEXFET power MOSFET are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. These benefits combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications
IRF1405 Pinout
IRF1405 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Gate |
| 2 | Drain |
| 3 | Source |
IRF1405 Key features
- Advanced Process Technology
- Ultra Low On-Resistance
- Dynamic dv/dt Rating
- 175°C Operating Temperature
- Fast Switching
- Repetitive Avalanche Allowed up to Tjmax
- Type Designator: IRF1405
- Type of Transistor: MOSFET
- Type of Control Channel: N -Channel
IRF1405 Specification
| Id (A) | Pd (W) | Vds (max) | Rds (on) | Vgs (max) |
|---|---|---|---|---|
| 133 | 200 | 55 | 0.0053 | 20 |
IRF1405 Equivalent/Alternative
- IRF034, IRF044, IRF044SMD, IRF054, IRF054SMD, IRF100B201
Application
- Electric Power Steering (EPS)
- Anti-lock Braking System (ABS)
- Wiper Control
- Climate Control
- Power Door
You can download this datasheet for IRF1405 169A 55V N-Channel Power MOSFET from the link given below:
