Today we have come up with an amazing circuit tutorial, the IR transmitter, and receiver, which we will discuss in detail. Generally, an IR Transmitter and receiver utilized to control any electronic gadget remotely implies distance. However, television remote, Radio remote, stereo system remote, AC remote, etc. are the best examples of IR transmitter and receiver devices.
However, the television remote comprises a TSOP1738 as the IR receiver, which faculties adjusted IR pulses and convert them into electrical signals.
Thus, here in this circuit, we are building the IR remote and its receiver circuit. In addition, we are utilizing IR LED as a transmitter and TSOP1738 as an IR receiver.
Hardware Components
The following components are required to make IR Transmitter and Receiver Circuit
| S.no | Component | Value | Qty |
|---|---|---|---|
| 1. | IR LED | – | 1 |
| 2. | Switch | – | 1 |
| 3. | IC | NE555 timer | 1 |
| 4. | Resistor | 1K, 10K, 20K, 470 ohms | 1, 1, 1, 2 |
| 5. | Battery | 9V | 1 |
| 6. | Ceramic Capacitor | 0.01uF, 1nF | 1, 1 |
| 7. | Electrolytic Capacitor | 1uF, 100uF | 1, 1 |
| 8. | IR Receiver | TSOP1738 | 1 |
| 9. | Transistor | BC557 | 1 |
| 10. | LED | – | 1 |
NE555 IC Pinout
For a detailed description of pinout, dimension features, and specifications download the datasheet of 555 Timer

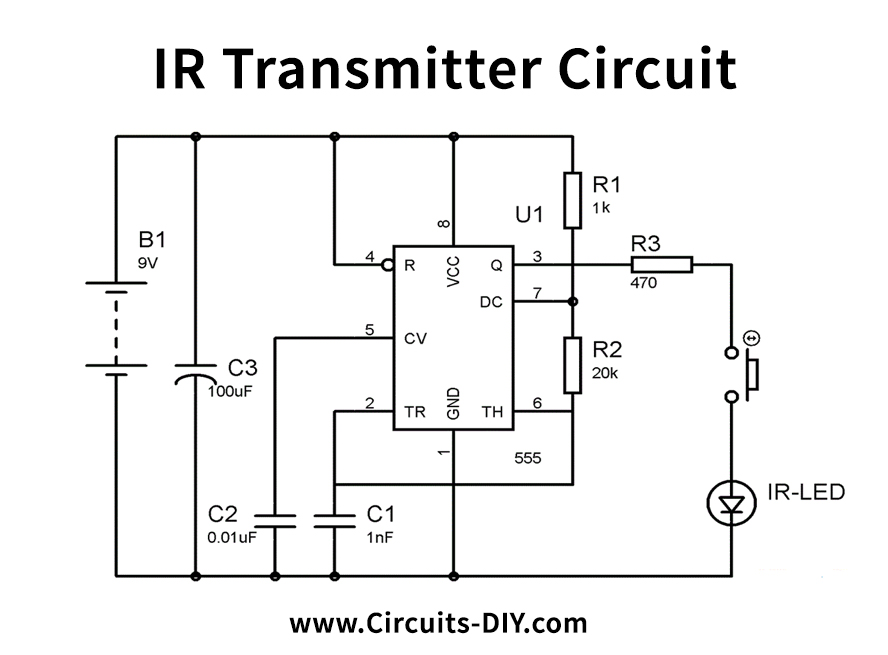

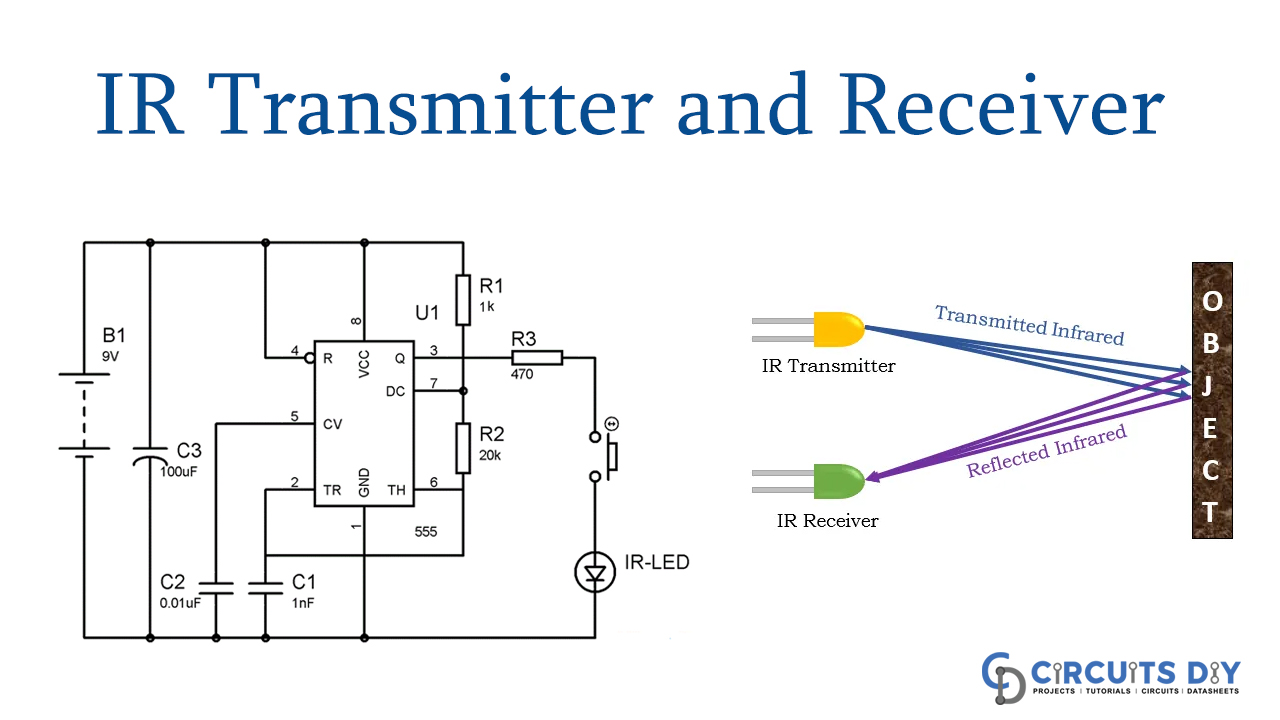

IR Transmitter and Receiver Circuit
Working Explanation
Here, in this circuit, we are utilizing TSOP1738 as a signal receiver, its operation will be discussed here in detail. So, we have to create a modulated Infrared beam of approximately 38 kHz. You can likewise use any TSOP, yet you have to produce an IR beam of respective frequency as TSOP. Henceforth, to do this operation, we utilize 555 timer IC. However, the NE555 timer IC in Astable mode wavers the IR beam at 38KHz.
Meanwhile, as we probably know that the oscillation frequency of the 555 timer IC is chosen by resistors R1, R2, and capacitor C1. So, we have utilized 1k R1, 20K R2, and 1nF capacitors. Meanwhile, this circuit configuration is typically used to generate an approximate frequency of 38 kHz. Therefore, it tends to be determined manually using this simple equation: 1.44/((R1+2*R2)*C1).
Applications and Uses
- It is generally used in Remote controlling operations
- It is likewise used in Data Transfer
- Moreover, this circuit can be used in Several Security applications
- Similarly, the Distance measuring devices are the second most common device in this circuit.
- It is likewise used in Proximity sensors
