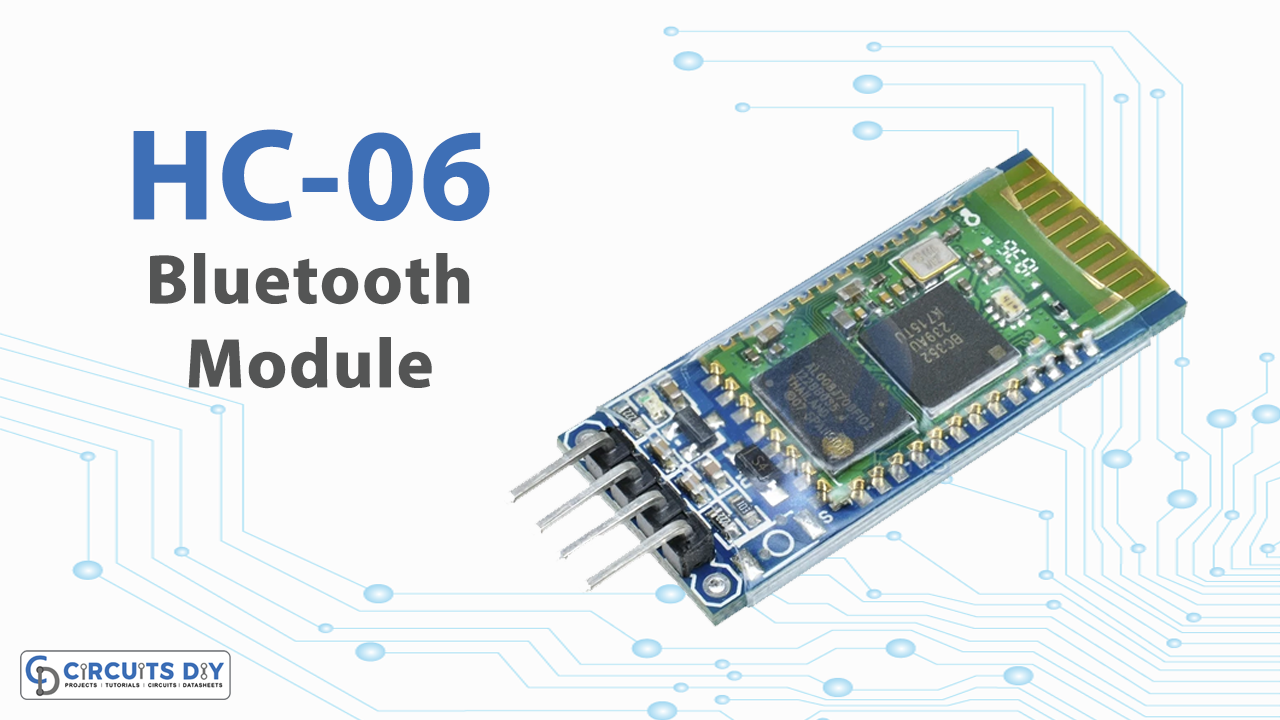

HC-06 Bluetooth Module

Contents hide

An Overview

HC06 is a Bluetooth device that provides serial communication (UART), designed to facilitate wireless communication between microcontrollers and other Bluetooth-enabled devices

Buy Now

Hardware Overview

This module has RS 232 TTL. as its transceiver module. Hence, there is no cable required for sending and receiving data for this module. The key feature of this Bluetooth module is that it can efficiently get serial wireless data transmission protocol. The board has a frequency band at which it operates is 2.4 GHz ISM frequency. HC-06 employs a famous 2.0+EDR Bluetooth standard. The advantage of this standard is that we can send data in fewer time intervals. It can effortlessly send the data in 0.5 seconds of an interval. With this feature, the workload on Bluetooth chips can be reduced and we can send a large amount of data in small time.

Working

The module immediately transmits all data received through the serial input over the air. When the module receives wireless data, it sends it out through the serial interface exactly as it was received. We need no user code specific to the Bluetooth module at all in the user microcontroller program.

Features

We can use the module for wireless communications of less than 100 meters.
Easy to interface and communicate.
The module is one of the cheapest solutions for wireless communication of all types present in the market.
Consumes very less power to function and can be used on battery-operated mobile systems.
We can interface the module with almost all controllers or processors as it uses a UART interface.
The modulation mode which is used in this module is Gauss frequency Shift Keying.
The Safety feature which it provides is authentication and encryption.
Its supported configuration is based on Bluetooth serial ports (major and minor).
We can also use this module in SMD.
They made this module through the ROHS process.
The Board of this module PIN is half-hole size.
It is based upon CSR BC 04 Bluetooth technology.
It has a high-performance wireless transceiver system.
Low-Cost module.
It has an external 8 Mbit flash.
It has a built-in 2.4 GHz antenna, the user does not need a test antenna.

Specifications

Bluetooth protocol: Bluetooth 2.0+ EDR standard
USB protocol: USB v1.1/2.0
Operating frequency: 2.4GHz ISM frequency band
Modulation mode: Gauss Frequency Shift Keying
Transmit power: ≤ 4dBm
Sensitivity: ≤-84dBm at 0.1% Bit Error Rate
Transmission speed: 2.1Mbps(Max)/160 kbps(Asynchronous)； 1Mbps/1Mbps(Synchronous)
Safety feature: Authentication and encryption
Supported configuration: Bluetooth serial port (major and minor)
Supply Voltage: +3.3 VDC 50mA
Operating temperature: -20 to 55℃
Size: 36.5*16mm
Weight: 4g

Pinouts of HC-06 Bluetooth Module

Pin Number	Pin Name	Description
1	Enable	This pin is used to toggle between Data Mode and AT command mode (set high). By default, it is in Data mode.
2	Vcc	Powers the module. Connect to +5V Supply voltage.
3	Ground	Ground pin of the module.
4	TX – Transmitter	Transmits Serial Data.
5	RX – Receiver	Receive Serial Data. It will broadcast every serial data given to this pin via Bluetooth.
6	State	It connected the state pin to the onboard LED, we can use it as feedback to check if Bluetooth works properly.

Applications of Bluetooth Module

Robotics

Robotic devices involve the operation or functions of Robots under the signals sent from a smartphone using an Android or smartphone Application and Bluetooth Communication. And, here Bluetooth module serves the purpose.

USB Dongle

Some laptops do not have a built-in Bluetooth adapter that adds connectivity for a device like a wireless mouse, keyboard, headphones, etc, Hence, require a USB Bluetooth dongle. A dongle adds the ability to connect any type of Bluetooth device. These dongles have a Bluetooth module in them that helps to connect the device.
