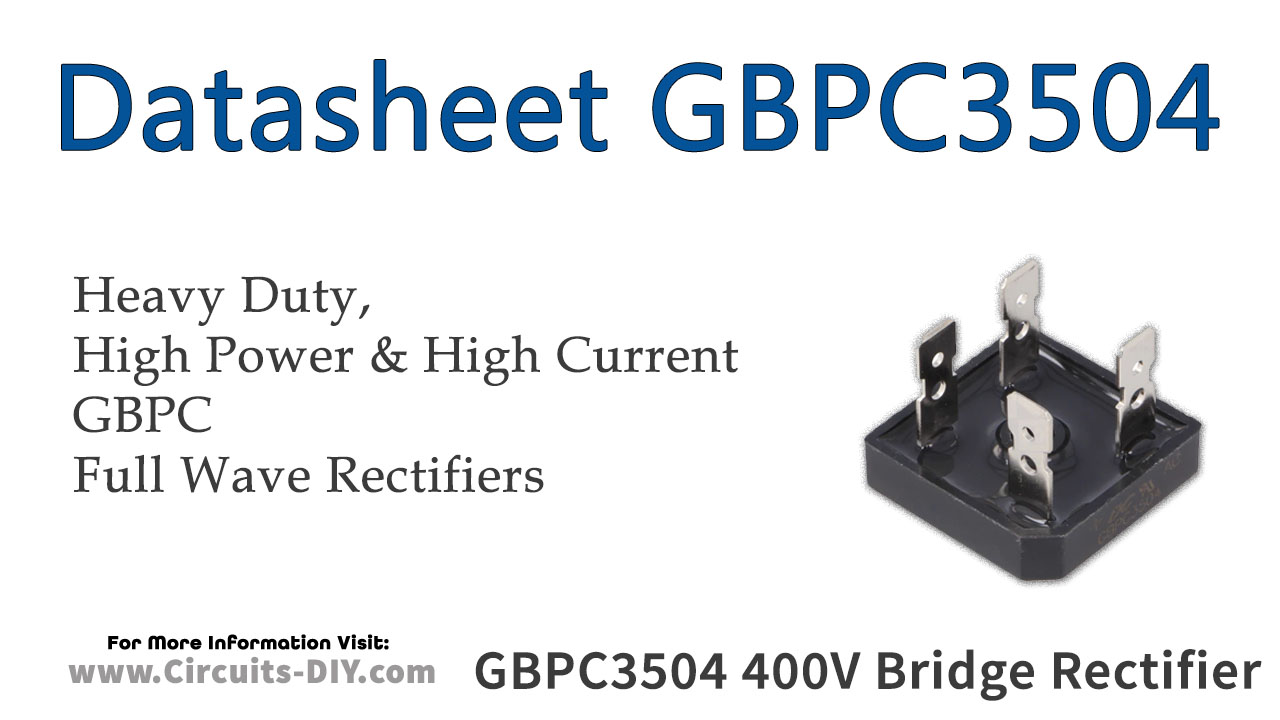

GBPC3504 400V 35A Bridge Rectifier has a High reverse voltage of up to 1000V, overload rating is a 35 amperes peak.
GBPC3504 Pinout
GBPC3504 Pin Configuration
Pin | Description |
---|---|
~ | AC Input |
~ | AC Input |
+ | DC Positive Output |
– | DC Negative Output |
GBPC3504 Features
- High Current and High Power Ratings
- Solid Construction for Panel Mounting
- Large Quantity Discounts Available
GBPC3504 Specification
Type | Vrrm (V) | Vrms (V) | Vdc (V) | Io (A) | Ir (mA) | Vf (V) |
---|---|---|---|---|---|---|
GBPC3504 | 400 | 280 | 400 | 35.0 | 0.005 | 1.1 |
You can download this datasheet for GBPC3504 400V 35A Bridge Rectifier from the link given below:
