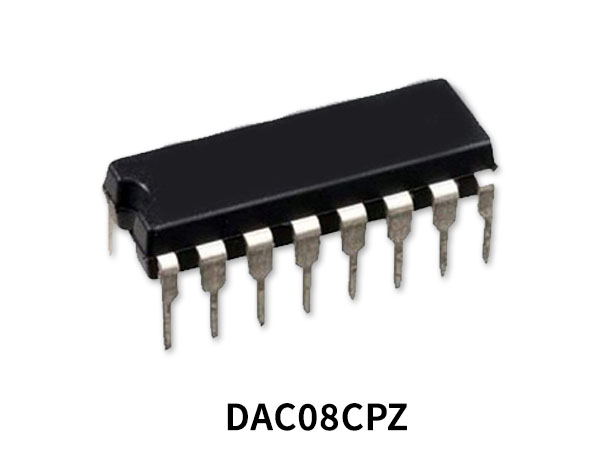

The DAC08CPZ series of 8-bit monolithic digital-to-analog converters provide very high-speed performance coupled with low cost and outstanding applications flexibility. All DAC08 series models guarantee full 8-bit monotonicity, and nonlinearities as tight as ±0.1% over the entire operating temperature range are available. Device performance is essentially unchanged over the ±4.5 V to ±18 V power supply range, with 33 mw power consumption attainable at ±5 V supplies. The compact size and low power consumption make the DAC08 attractive for portable and military/aerospace applications; devices processed to MIL-STD-883, Level B are available. DAC08 applications include 8-bit, 1 ms A/D converters, servo motor and pen drivers, waveform generators, audio encoders and attenuators, analog meter drivers, programmable power supplies, CRT display drivers, high-speed modems and other applications where low cost, high speed and complete input/output versatility are required.

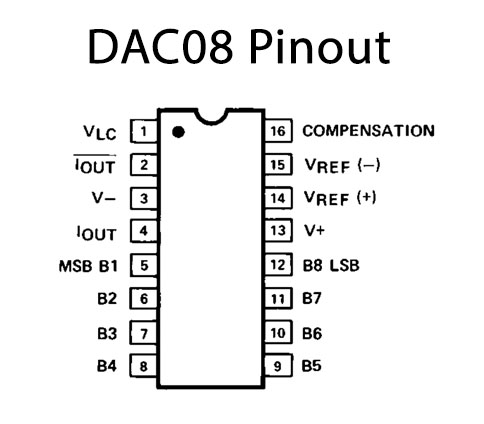

DAC08CPZ Pinout
DAC08CPZ Pin Configuration
Pin No | Pin Name | Description |
---|---|---|
1 | VLC | Threshold Control |
2 | IOUT’ | Current Output Pin (Active Low) |
3 | V- | Negative Supply |
4 | IOUT | Current Output Pin |
5 | B1 (MSB) | Digital Input Bit 1 |
6 | B2 | Digital Input Bit 2 |
7 | B3 | Digital Input Bit 3 |
8 | B4 | Digital Input Bit 4 |
9 | B5 | Digital Input Bit 5 |
10 | B6 | Digital Input Bit 6 |
11 | B7 | Digital Input Bit 7 |
12 | B8 (LSB) | Digital Input Bit 8 |
13 | V+ | Positive Supply |
14 | Vrfe+ | Positive Reference Voltage |
15 | Vrfe(-) | Negative Reference Voltage |
16 | COMPENSATION | Compensation Pin |
DAC08CPZ Features
- Fast Settling Output Current: 85 ns
- Full-Scale Current pre-matched to 61 LSB
- Direct Interface to TTL, CMOS, ECL, HTL, PMOS
- Nonlinearity to 0.1% Maximum Over Temperature Range
- High Output Impedance and Compliance: –10 V to +18 V
- Complementary Current Outputs
- Wide Range Multiplying Capability: 1 MHz Bandwidth
- Low FS Current Drift: 610 ppm/8C
- Wide Power Supply Range: 64.5 V to 618 V
- Low Power Consumption: 33 mw 65 V
- Low Cost
- Available in Die Form
Application
- CRT display drivers
- High-speed modems
- Low cost
- High speed
- Attenuators
- Analog Meter Drivers
You can download this datasheet for DAC08 8-bit Multiplying D/A Converter from the link given below:
