CD4025 Triple 3-Input NOR Gate – Datasheet

4,556 views

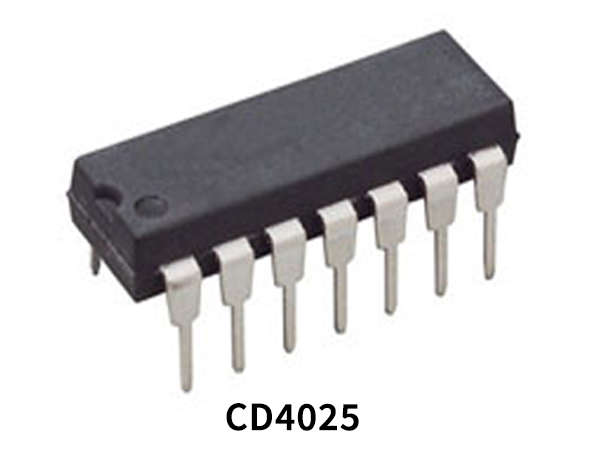

CD4025 consists of three NOR gates with 3 inputs and a single output. The IC is constructed by using the complementary MOS (CMOS) technology, integrated with p-type and n-type enhancement mode transistors. The IC is always available in a 14 – pin hermetically sealed dual in line package (DIP). The output of the IC always comes in TTL, which makes it easy to interface with other TTL, CMOS, and NMOS devices. The IC offers many features such as high noise immunity and low power dissipation. All inputs are protected against static discharge with diodes to VDD and VSS.

What is NOR Gate?

An OR gate followed by a NOT gate in a cascade is called a NOR gate. The inclusive NOR (Not – OR) gate has an output that is normally at logic level “1” and only goes “LOW” to a logic level “0” when any of its inputs are at logic level “1”. The Logic NOR Gate is the reverse or complementary form of the inclusive OR gate.

CD4025 Key Features

  • Wide supply voltage range 3.0V to 15V
  • High noise immunity 0.45 VDD (typ.)
  • 5V –10V parametric ratings
  • Low power

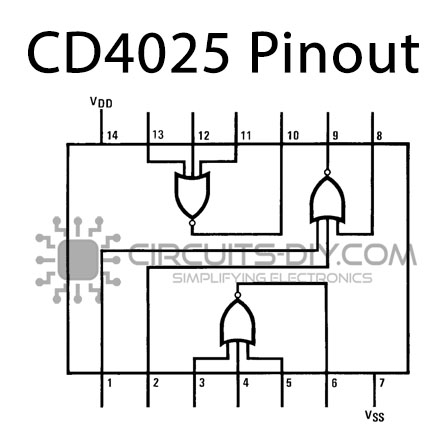

CD4025 Pinout

CD4025-Pinout
Pin NoPin NameDescription
1A1input 1 of NOR gate 1
2B1input 2 of NOR gate 1
3A2input 1 of NOR gate 2
4B2input 2 of NOR gate 2
5C2input 3 of NOR gate 2
6Q2output of NOR gate 2
7VSSsource supply
8C1input 3 of NOR gate 1
9Q1output of NOR gate 1
10Q3output of NOR gate 3
11C3input 1 of NOR gate 3
12B3input 2 of NOR gate 3
13A3input 3 of NOR gate 3
14VDDDrain supply

Application

  • Cell phone
  • Computing
  • STB
  • LCD TV
  • Industrial controllers

CD4025 Datasheet

You can download the datasheet for CD4025 Triple 3-Input NOR Gate IC from the link given below:
