The CA3140 is a 4.5MHz, BiMOS Operational Amplifier with MOSFET Input/Bipolar Output that combines the advantages of high voltage PMOS transistors with high voltage bipolar transistors on a single monolithic chip. The IC has a wide range of working voltages and conditions. CA3140 is directly interfaceable with PMOS, NMOS, and TTL devices.
Operational Amplifier
An operational amplifier is a voltage amplifying device; that is designed with the intention to be used with external feedback components such as resistors and capacitors between its I/O terminals. These feedback components determine the resulting function or “operation” of the amplifier and by virtue of the different feedback, configurations whether resistive, capacitive, or both.
CA3140 Pinout
CA3140 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | OFFSET NULL | Offset Null Pin 1 |
| 2 | INV.INPUT | Inverting Input Pin |
| 3 | NON-INV.INPUT | Non Inverting Input Pin |
| 4 | V- | Negative Power Supply |
| 5 | OFFSET NULL | Offset Null Pin 2 |
| 6 | OUTPUT | Amplified Output Signal |
| 7 | V+ | Positive Power Supply |
| 8 | STROBE PIN | Shut Down the Output Stage |
How To Use CA3140

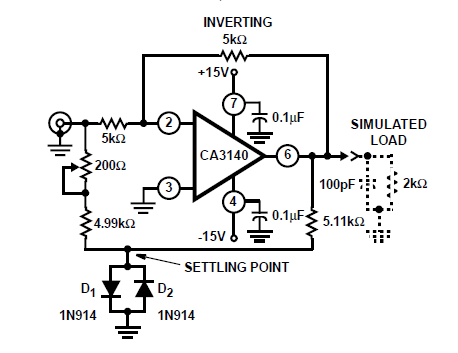

The above given test circuit represents the operation of the CA3140 as an operational amplifier with an inverting input signal. In order to do this, apply a suitable Vcc and Vss at pin 7 and 4 of the IC. Also, ground the non-inverting, while simulating a suitable RC load at the output.
CA3140 Features and Specifications
- MOSFET Input Stage
- Very High Input Impedance (ZIN) -1.5TΩ (Typ)
- Very Low Input Current (Il) -10pA (Typ) at ±15V
- Wide Common Mode Input Voltage Range (VlCR) – Can be
Swung 0.5V Below Negative Supply Voltage Rail - Output Swing Complements Input Common Mode Range
- Directly Replaces Industry Type 741 in Most Applications
Applications
- Ground-Referenced Single Supply Amplifiers in Automobile and Portable Instrumentation
- Sample and Hold Amplifiers
- Long Duration Timers/Multivibrators (µseconds-Minutes-Hours)
- Photocurrent Instrumentation
- Peak Detectors
- Active Filters
- Comparators
- Interface in 5V TTL Systems and Other Low Supply Voltage Systems
- All Standard Operational Amplifier Applications
- Function Generators
- Tone Controls
- Power Supplies
- Portable Instruments
- Intrusion Alarm Systems
CA3140 Datasheet
You can download this datasheet for CA3140 Bi-CMOS Operational Amplifier from the link given below:
