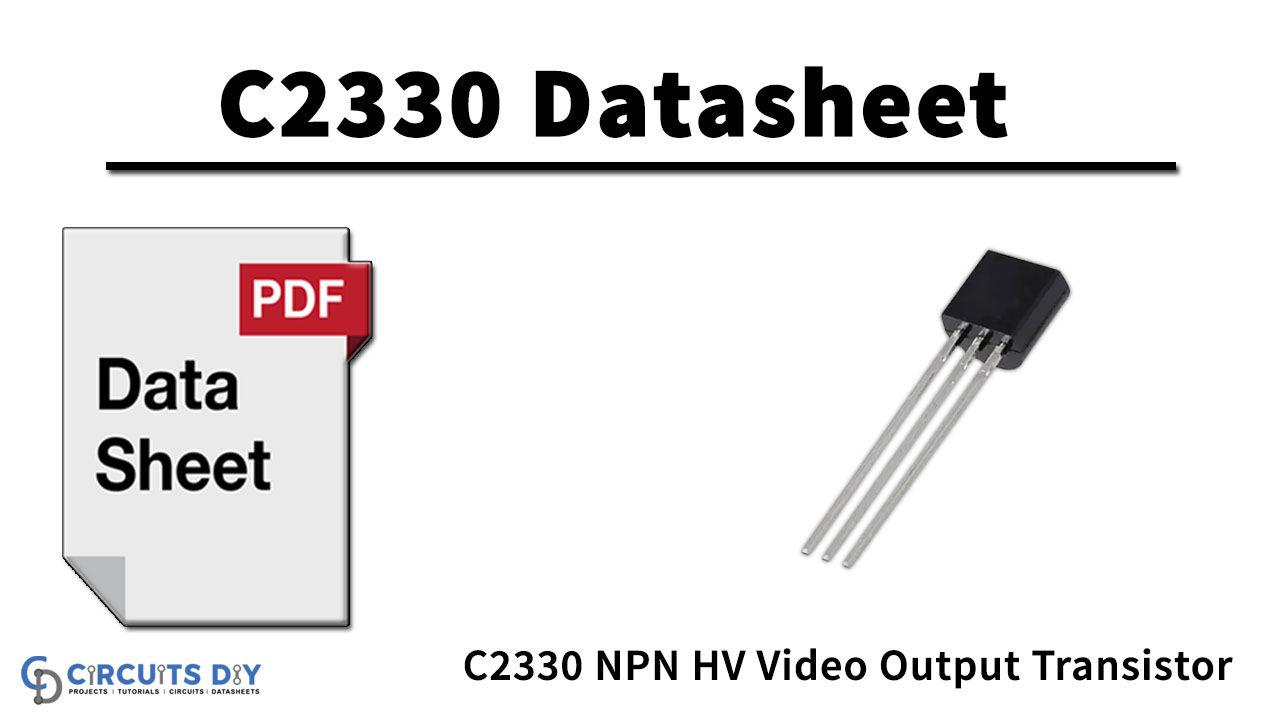

C2330 NPN HV Video Output Transistor is designed for Color TV Chroma Output application.
C2330 Pinout
C2330 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Collector |
| 3 | Base |
C2330 Key Features
- Collector-Base Voltage : VCBO=400V
- Current Gain Bandwidth Product : fT=50MHz (TYP.)
C2330 Specification
| Name | Description |
|---|---|
| Collector-Emitter Voltage (Vce) | 300 V |
| Collector-Base Voltage (Vcb) | 300 V |
| Emitter-Base Voltage (Veb) | 7 V |
| Collector Current (Ic) | 0.1 A |
| Collector Power Dissipation (Pc) | 1 W |
| Transition Frequency | 50 MHz |
Application
- Color TV Chroma Output
You can download this datasheet for C2330 NPN HV Video Output Transistor – Datasheet from the link given below:
