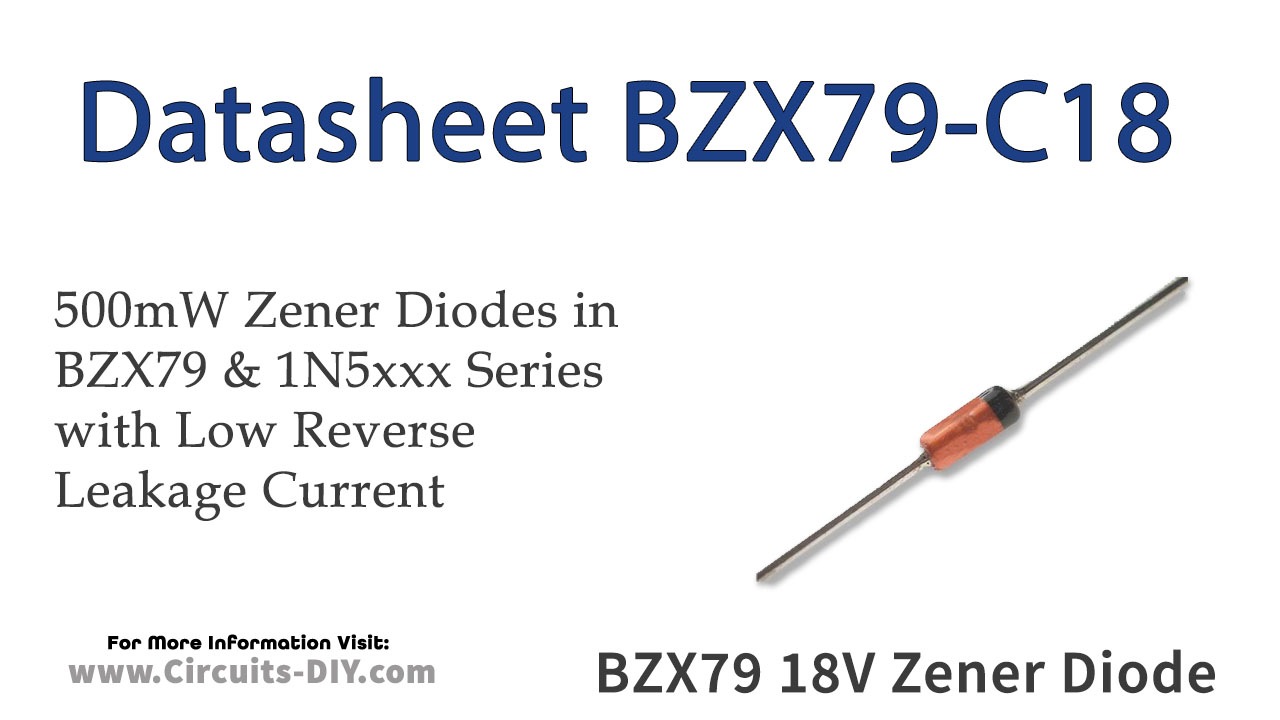

BZX79 18 Volt 500mW Zener diode is a two-way switch means that it can conduct current in forward as well as reverse direction. It is a heavily doped diode and permits the reverse current when a specific voltage level is reached.
BZX79-C18 Features & Specification
- Min. Working Zener Voltage (Vz): 16.8V
- Max. Working Zener Voltage (Vz): 19.1V
- Continuous Forward Current (If): 0.25A
- Max. Reverse Leakage Current (Ir): 0.05µA
- Forward Voltage Drop (Vf): 0.9V
- Total Power Dissipation (Ptot): 500mW
Application
- Low voltage stabilizers or voltage references.
You can download this datasheet for BZX79 18V 500mW Zener Diode from the link given below:
