BTA41-700 40A 700V TRIAC – Datasheet

4,051 views

The BTA41 TRIAC family is high-performance glass passivated PNPN devices. This device is a fully isolated package suitable for AC switching applications, phase control applications such as fan speed and temperature modulation control, lighting control, and static switching relay where gate high sensitivity is required.

BTA41-700 40A 700V TRIAC

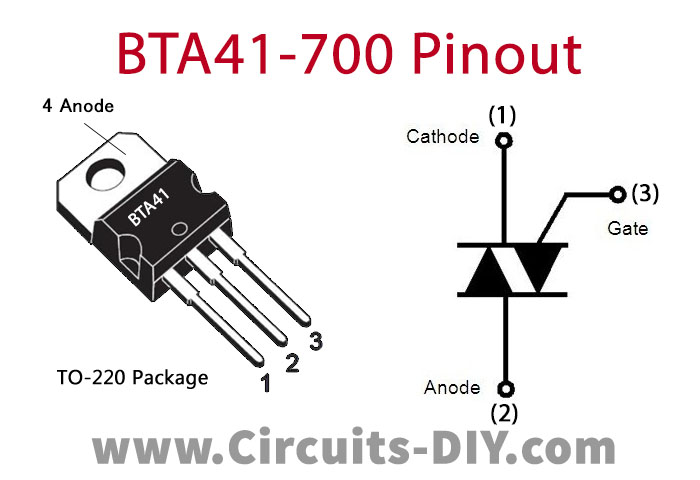

BTA41 Pinout

BTA41-700 Pinout

BTA41-700 Pin Configuration

Pin NoPin Name
1Cathode
2Anode
3Gate

BTA41-700 Features

  • High Communication
  • High Surge Current Capability
  • Insulating Voltage up to 2500 V

BTA41-700 Specification

TypeVdsm (V)dV/dT (V/µs)It (A)Igt (mA)Vgt (V)
BTA41700500.040.0501.3

Application

  • AC switching application
  • Phase control application such as fan speed
  • Temperature modulation control
  • Lighting control
  • Static switching relay

You can download this datasheet for BTA41-700 40A 700V TRIAC – Datasheet from the link given below:
