BTA16-1000 16A 1000V TRIAC – Datasheet

5,490 views

The BTA16 16A 1000V TRIAC family is a high-performance glass passivated PN device. These parts are suitable for general purpose applications where high surge current capability is required. Application such as phase control and static switching on inductive or resistive load.

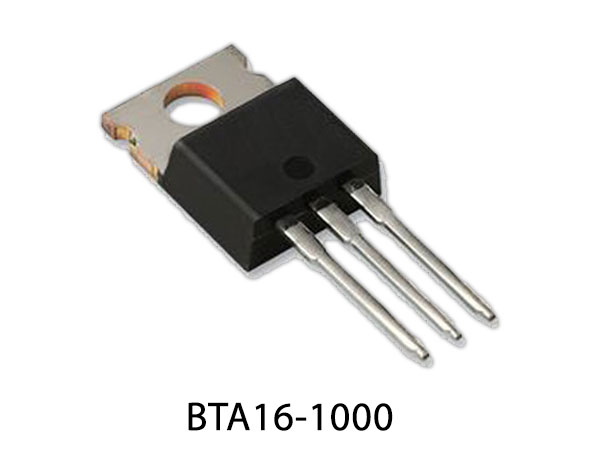

BTA16-1000 16A 1000V TRIAC

BTA16-600 Pinout

BTA16-1000 Pinout

BTA16-1000 Pin Configuration

Pin NoPin Name
1Cathode
2Anode
3Gate

BTA16-1000 Features

  • High Communication
  • High Surge Current up to 120 A
  • Insulating Voltage up to 2500 V

BTA16-1000 Specification

TypeVdsm (V)dV/dT (V/µs)It (A)Igt (mA)Vgt (V)
BTA161000250.016.0351.3

Application

  • AC switching application
  • Phase control application such as fan speed
  • Temperature modulation control
  • Lighting control
  • Static switching relay

You can download this datasheet for BTA16-1000 16A 1000V TRIAC – Datasheet from the link given below:
