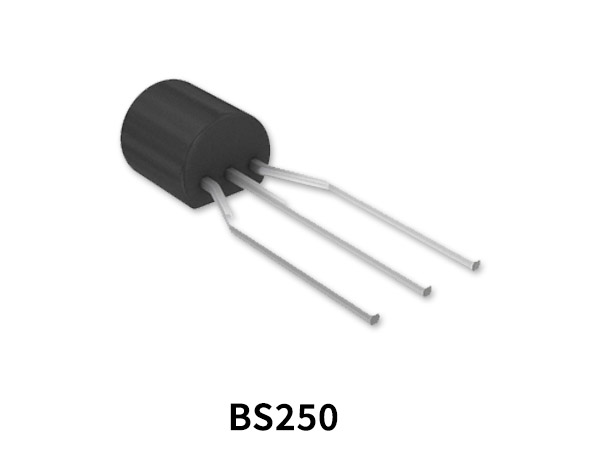

BS250 0.25A 45V P-channel enhancement mode vertical D-MOS transistor in TO-92 variant envelope and intended for use in relay, high-speed and line-transformer drivers.

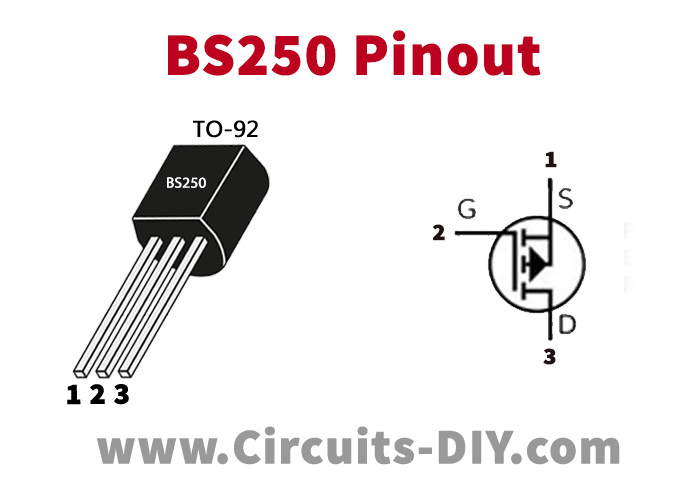

BS250 Pinout
BS250 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Source |
| 2 | Gate |
| 3 | Drain |
BS250 Key Features
- Low RDS(on)
- Direct interface to C-MOS
- High-speed switching
- No second breakdown
- Type Designator: BS250P
- Type of Transistor: MOSFET
- Type of Control Channel: P -Channel
Specification
| Id (mA) | Pd | Vds (max) | Vgs | Rds |
|---|---|---|---|---|
| 0.23 | 0.7 | 45 | 20 | 14 |
BS250 Benefits
- Ease in Driving Switches
- Low Offset (Error) Voltage
- Low-Voltage Operation
- High-Speed Switching
- Easily Driven Without Buffer
BS250 Equivalent/Alternative
- BS250F, BS270
Application
- Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc.
- Battery Operated Systems
- Power Supply, Converter Circuits
- Motor Control
You can download this datasheet for BS250 0.25A 45V P-Channel D-Mos Transistor from the link given below:
