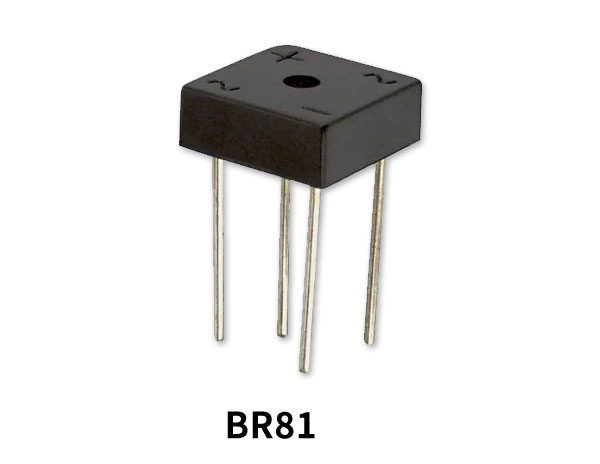

BR81 100V 8A Bridge Rectifier has a High reverse voltage of up to 1000V, overload rating is a 125 amperes peak. BR81 has a single-phase, half wave, 60 Hz, resistive or inductive load.

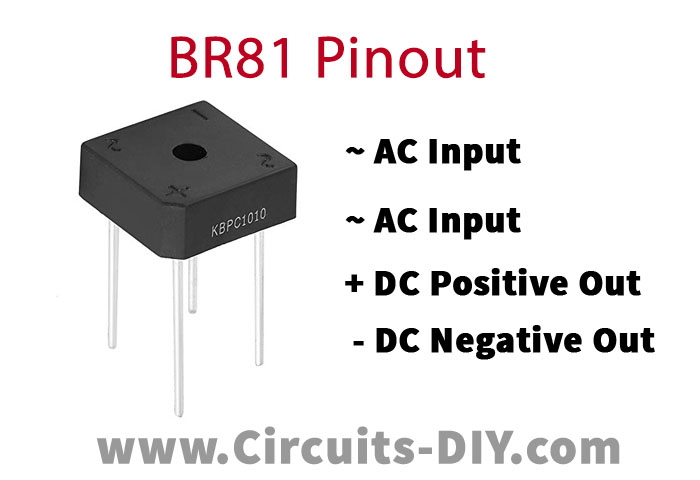

BR81 Pinout
BR81 Pin Configuration
| Pin | Description |
|---|---|
| ~ | AC Input |
| ~ | AC Input |
| + | DC Positive Output |
| – | DC Negative Output |
BR81 Key Features
- Surge overload rating: 125 amperes peak
- Low forward voltage drop
- Mounting position: Any
- Mounting: Hole thru for 6 screw
BR81 Specification
| Mfr Package Description | BR-8, 4 Pin |
| Diode Type | Bridge Rectifier Diode |
| Breakdown Voltage-Min | 100.0 V |
| Non-rep Pk Forward Current-Max | 125.0 A |
| Diode Element Material | Silicon |
| Operating Temperature-Min | -65.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Output Current-Max | 8.0 A |
| Rep Pk Reverse Voltage-Max | 100.0 V |
You can download this datasheet for BR81 100V 8A Bridge Rectifier from the link given below:
