The BDX33B is silicon Epitaxial-Base NPN power transistors in monolithic Darlington configuration mounted in Jedec TO-220 plastic package. They are intended for use in power linear and switching applications. The complementary PNP types is BDX34Brespectively.
What is Darlington Transistor?
A Darlington transistor is also known as a Darlington pair is an electronics component made via the combination of two PNP or NPN BJTs (Bipolar Junction Transistor) connected in such a way that it allows a very high amount of current gain. Darlington pair is simply used in many applications where switching or amplification is crucial.

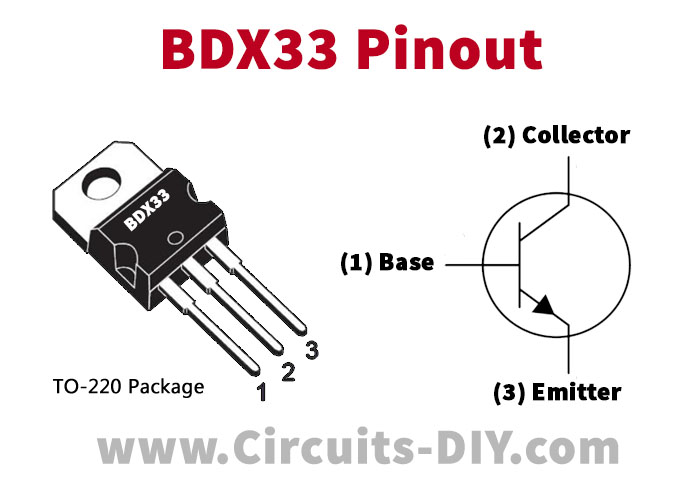

BDX33 Pinout
BDX33 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Base |
| 2 | Collector |
| 3 | Emitter |
BDX33 Key Features
- Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 80V(Min)
- High DC Current Gain : hFE= 750(Min) @IC= 3A
- Low Collector Saturation Voltage : VCE(sat)= 2.5V(Max.)@ IC= 3A
- Minimum Lot-to-Lot variations for robust device performance
- Type Designator: BDX33B
- Material of Transistor: Si
- Polarity: NPN
BDX33 Specification
| Ic (mA) | Pd | Vce (max) | Vcb | hfe | @Ic |
|---|---|---|---|---|---|
| 10 | 70 | 80 | 80 | 750 | 3000 |
BDX33 Equivalent/Alternate:
- BDX11, BDX11-4, BDX11-5, BDX11-6, BDX11-7, BDX34
Application
- General Purpose Amplifier
- Low Speed Switching
You can download this datasheet for BDX33 NPN Darlington Power Transistor from the link given below:
