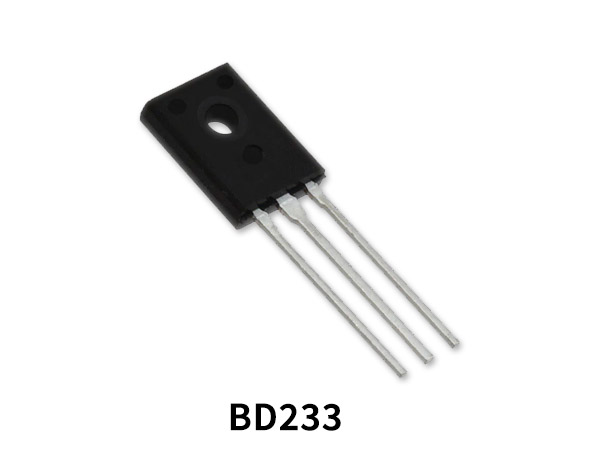

BD233 NPN Power Transistor – Datasheet

BD233 NPN power transistor is lot of variations for robust device performance and reliable operation applications

Power Transistor?

Transistors are three-terminal semiconductor electronic devices that can be used as switches or amplifiers. They can be of NPN or PNP polarity, and many different types are available with different power and switching speed ratings. If a transistor designed to these concepts can handle more than 1 A of collector current, it is generally considered to be a power transistor. Such transistors must have low output resistance to deliver large load currents, and good junction insulation to resist high voltages. They must also dissipate heat very quickly to avoid overheating.

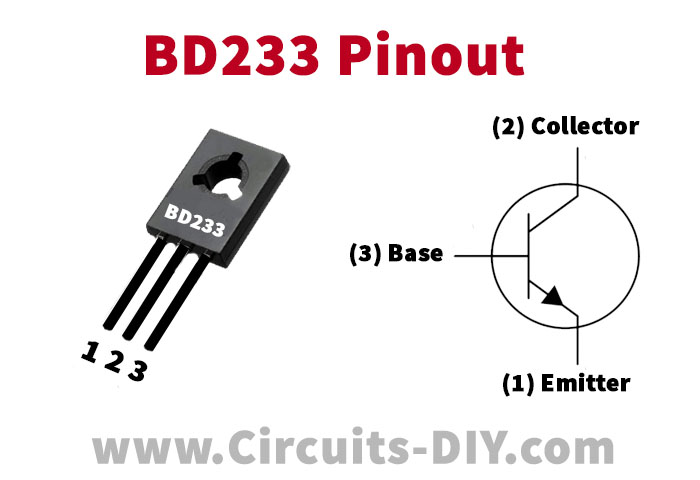

BD233 Pinout

BD233 Pin Configuration

Pin No	Pin Name
1	Emitter
2	Collector
3	Base

BD233 Key Features

• DC Current Gain-
  • : hFE= 40(Min)@ IC= 0.15A
• Minimum Lot-to-Lot variations for robust device performance and reliable operation
• Type Designator: BD233
• Material of Transistor: Si
• Polarity: NPN

BD233 Specification

Ic (mA)	Vce (max)	Vcb	hfe	@Ic	Ft
2	45	45	40	150	3

BD233 Equivalent/Alternate:

• BD201, BD202, BD203, BD204, BD234

Application

• Audio Amplifiers
• Drivers
• Medium Power Linear switching

You can download this datasheet for BD233 NPN Power Transistor from the link given below:
